Page 1
GROMMET
AUTOMATIC
THERMAL
PROTECTOR
°
0
9
REF.MODEL
CUSTOMER
STANDARDK55HXSSD-5455 2.0
HP
(4) LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
BLK= 41.000 +3-0, WHT= 41.000 +3-0,
BRN= 41.000 +3-0, BRN/WHT STRIPE= 41.000 +3-0
(4) .250 FLAG TYPE Q.C.
TERMS. WITH INSUL. GRIP
(4) LEADS, #18, .031 THICK
INSUL. (2) YELLOW & (2) ORANGE
FOR REVERSING ROTATION
3.500 u.500
4
5
°
8-32 THR'D
(4) HOLES
.120 - .124 DIA.
AMPSVOLTS
60208-2301/3 5455
RPMHZ
1075
ROTATION
CCW LEAD END REV
DESCRIPTION / REMARKSCATALOG NO.
BLACK DRAIN PLUG IN
EACH ENDSHIELD FOR
DRAINING OF CONDENSATE
(1 EACH END).
SEE ASSEMBLY
8.312 u.062
4.062 3.705 u.047
NAMEPLATE
T
O
P
DANGER
T
O
P
3.250
MIN.
2 FLATS
90° APART
.4995
.5000
.453-.469
INSTRUCTION #4
5.625
5.125 DIA. B.C.
9
0
°
BLACK DRAIN PLUG
TYP BOTH ENDS
NIDEC MOTOR CORPORATION 25-May-17
CREATED DRAWING.
ISSUED BY :
G. MEDINA
REVISION RECORD FOR:
°
0
9
TOTALLY ENCLOSED
ENGINEER APPROVED :
(4) EXTRA NUTS
WITH CAPTIVE
STAR WASHERS
ECO E28698
H. NAVARRO
TOP
.375
.718
(4) 8-18 SCREWS SUPPLIED
IN MOTOR SHELL HOLES
#16 GRN/YEL GROUND LEAD TO BE 6.000 u.250
BETWEEN CENTERS OF TERMS. TERM TO
FIT #10 SCREW
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

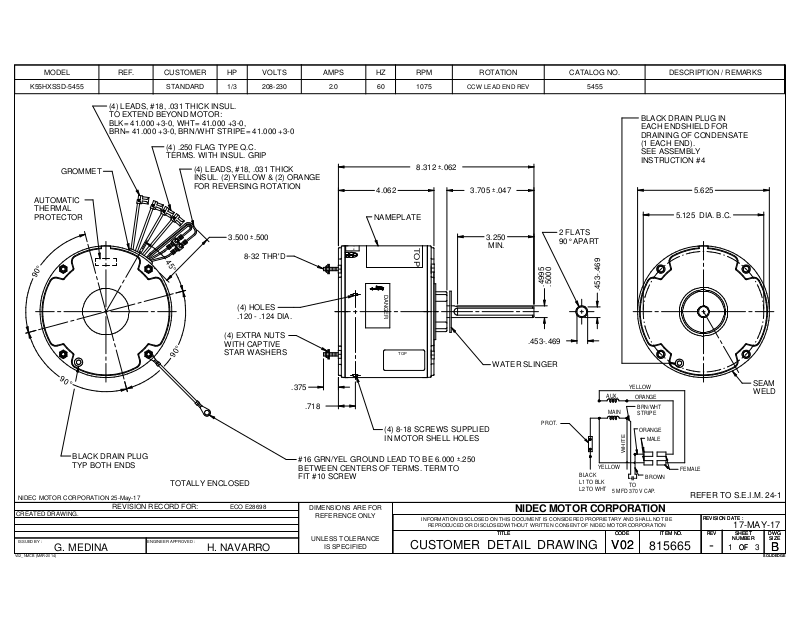

CUSTOMER DETAIL DRAWING
.453-.469
WATER SLINGER
AUX.
MAIN
PROT.
YELLOW
BLACK
L1 TO BLK
L2 TO WHT
5 MFD 370 V CAP.
NIDEC MOTOR CORPORATION
TITLE
TITLE
V02
V02
YELLOW
ORANGE
BRN/WHT
STRIPE
ORANGE
E
MALE
T
I
H
W
BROWN
TO
CODE ITEM NO.
CODE ITEM NO.
815665
SEAM
WELD
FEMALE
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
17-MAY-17
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGE
