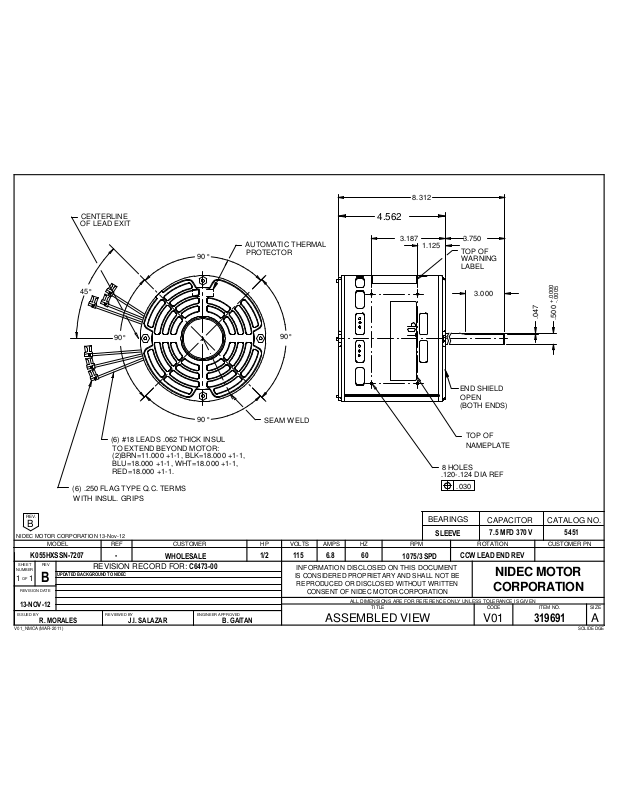

US Motors 5451 Dimensional Sheet

8.312

CENTERLINE

OF LEAD EXIT

45°

90°

(6) #18 LEADS .062 THICK INSUL

TO EXTEND BEYOND MOTOR:
(2)BRN=11.000 +1-1, BLK=18.000 +1-1,
BLU=18.000 +1-1, WHT=18.000 +1-1,
RED=18.000 +1-1.

(6) .250 FLAG TYPE Q.C. TERMS

90°

90°

AUTOMATIC THERMAL
PROTECTOR

90°

SEAM WELD

4.562

3.187 3.750

1.125
TOP OF

WARNING
LABEL

3.000

END SHIELD
OPEN

(BOTH ENDS)

TOP OF
NAMEPLATE

8 HOLES
.120-.124 DIA REF

.030

+.0000

-.0005

.047

.500

REV.

B

NIDEC MOTOR CORPORATION 13-Nov-12

NUMBER

1 1

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN

K055HXSSN-7207 -

SHEET

REV

OF

REVISION DATE

UPDATED BACKGROUND TO NIDEC

B

REVISION RECORD FOR:

WHOLESALE

C6473-00

13-NOV-12

ISSUED BY

R. MORALES J.I. SALAZAR B. GAITAN

REVIEWED BY ENGINEER APPROVED

1/2 115

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

BEARINGS

SLEEVE

6.8

INFORMATION DISCLOSED ON THIS DOCUMENT

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

60

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

1075/3 SPD

ASSEMBLED VIEW

CAPACITOR

7.5 MFD 370 V 5451

CCW LEAD END REV

NIDEC MOTOR

CORPORATION

V01

CATALOG NO.

319691

A

SOLIDEDGEV01_NMCA (MAR-2011)
