MODEL REF RPM
K55HXKPR-3346 1/2
---------
CUSTOMER
WHOLESALE-HAC
HP ROTATION
VOLTS
AMPS
3.6
HZ
60
5 LEADS,#18, .031 THICK INSUL.
4 LEADS, #18, .031
THICK INSUL. FOR
REVERSING ROTATION
(2) PUR= 4.000 +2-0
TO EXTEND BEYOND MOTOR
YEL=36.000 ± 1.5, BLK=36.000 ± 1.5
BLU=36.000 ± 1.5, WHT=36.000 ± 1.5
RED=36.000 ± 1.5
(2) ORG= 4.000 +2-0
5.625
5.125 DIA. B.C.
AUTOMATIC THERMAL
REV.
B
NAMEPLATE
PROTECTOR
(5).250 STRAIGHT
TYPE Q.C. TERMS.
REV.
B
REV.
B
1075/4 SPD
CCW LEAD END REV208-230
10.312
5.9
5.312 5.000
4.187
1.125
TOP
T
O
P
TOP
NOTE:
MARKETING APPROVAL**
4.000
ENDSHIELD OPEN
(BOTH ENDS)
CAT. NO.
5433
DESCRIPTION / REMARKS
K55 HUB, S/A BRG.
NO CAPACITOR SUPPLIER CHANGE WITHOUT
4
45°
+.0000
-.0005
.500
.047
5
°
SEAM WELD
#16 GRN/YEL GROUND LEAD TO BE
12.000±.250 BETWEEN CENTERS OF
TERMS. TERM. TO FIT #10 SCREW
NIDEC MOTOR CORPORATION 12-Mar-19
NIDEC MOTOR CORPORATION 12-Mar-19
CHANGED THE REVERSING LEAD EXIT LOACATION.
CHANGED THE POSITION OF THE GROUND LEAD.
ISSUED BY :
ISSUED BY :
A.GARCIA
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO E34021
J. RICE
(2) .250 INSULATED
STRAIGHT TYPE Q.C.
TERMINALS
2 LEADS, #18, .031
THICK INSUL.
FOR CAPACITOR
BROWN=36.000±1.5
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
RESCUE LABEL
DANGER LABEL
WARNING LABEL TO
BE ADJACENT TO
REVERSING LEADS
NOTE:
INSTRUCTION FORM & KIT WITH
4 NUTS WITH CAPTIVE STAR WASHER
SHIPPED IN CARTON
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

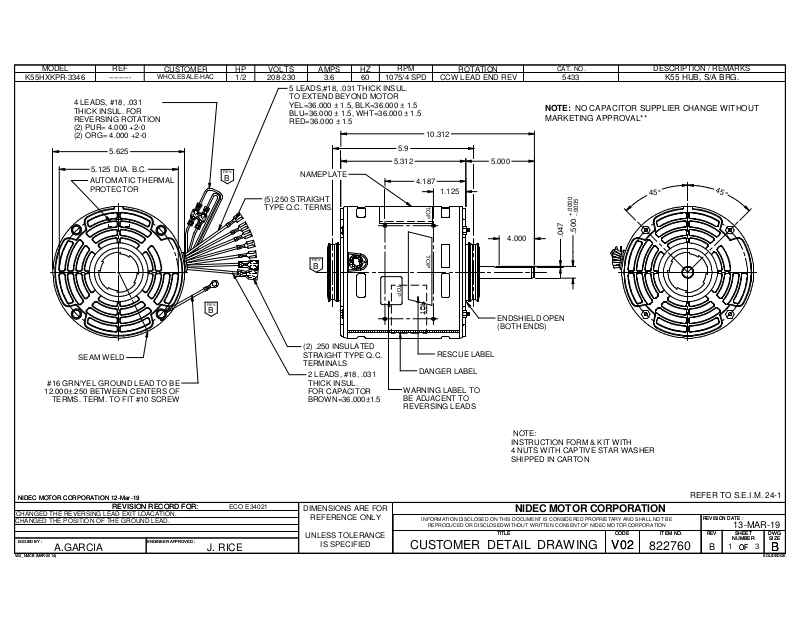

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
822760
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
B
13-MAR-19
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
