Page 1
MODEL REF RPM
K55HXKPP-3345
CUSTOMER
WHOLESALE-HAC
HP
1/2
VOLTS CUSTOMER PN.
115
AMPS
7.3 60 1075/4 SPD
HZ
NAMEPLATE
4 LEADS,#18,.031
THICK INSUL FOR
5.625
REVERSING
ROTATION
5.125 DIA. B.C.
(2) PUR=4.000 +2-0
(2) ORG=4.000 +2-0
AUTOMATIC THERMAL
PROTECTOR
REV.
(5).250 STRAIGHT
A
TYPE Q.C. TERMS
(2).250 INSULATED
STRAIGHT TYPE Q.C.
TERMINALS
REV.
A
2 LEADS, #18, .031
REV.
A
THICK INSUL. FOR
CAPACITOR
BROWN=36.000u1.5
CCW LEAD END REVERSIBLE
10.86
5.312
4.187 REF.
5.9
1.125
T
O
P
T
O
P
T
O
P
ROTATION
5432
5.000 ±.047
4.000
+.0000
.500
.047
ENDSHIELDS
OPEN
(BOTH ENDS)
DESCRIPTION / REMARKS
K55 HUB, S/A BRG
45°
-.0005
45°
#16 GRN/YEL GROUND LEAD TO BE
12.000±.250 BETWEEN CENTERS OF
TERMS. TERM. TO FIT #10 SCREW
NIDEC MOTOR CORPORATION 12-Mar-19
CHANGED THE REVERSING LEAD EXIT LOACATION.
CHANGED THE POSITION OF THE GROUND LEAD.
ISSUED BY :
A.GARCIA
REVISION RECORD FOR:
ENGINEER APPROVED :
ECO E34021
J. RICE
5 LEADS,#18, .031 THICK INSUL
TO EXTEND BEYOND MOTOR
YEL=36.000 u 1.5, BLK=36.000 u 1.5
BLU=36.000 u 1.5, WHT=36.000 u 1.5
RED=36.000 u 1.5
NOTE:
INSTRUCTION FORM & KIT WITH
4 NUTS WITH CAPTIVE STAR WASHER
SHIPPED IN CARTON
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
RESCUE LABEL
DANGER LABEL
WARNING LABEL TO BE
ADJACENT TO
REVERSING LEADS
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

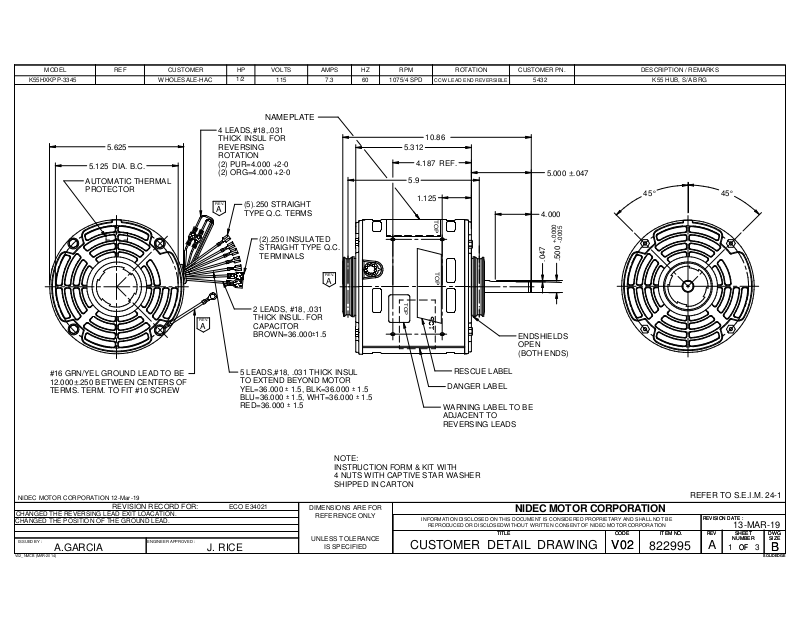

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
822995
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
A
13-MAR-19
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGE
