MODEL REF CUSTOMER
K55HXLMJ-2478
- - - -
#16 GRN/YEL GRN LEAD
TO BE 10.000u.250
BETWEEN CENTER OF TERMS,
TERM. TO FIT #10 SCREW
5.625
SEAM
56°
WELD
WHOLESALE HAC 1/3-1/6
AUTOMATIC
THERMAL
PROTECTOR
HP
DRAIN PLUG
LABEL
VOLTS
208-230
AMPS
2.2
HZ
60
4 LEADS, #18, .031 THICK INSUL.
(2) YEL & (2) PUR FOR
REVERSING ROTATION TO EXTEND
BEYOND MOTOR 4.000 + 2.000 - 0.000
(1) BRN, (1) BRN/WHT, (1)BLK
& (1) WHT LEADS TO HAVE
.250 STRAIGHT TYPE
Q.C. TERMS. WITH INSUL GRIP
TOP
4.312
.718
TOP
RPM
1075
ROTATION
CCW LEAD END REV
9.312
5.000
ENCLOSED
ENDSHIELD
(BOTH ENDS)
4.000
CATALOG #
5430
NOTE:
NO CAPACITOR SUPPLIER CHANGE WITHOUT
MARKETING APPROVAL**
0
5
0
0
0
0
0
0
.
.
-
+
.5000
.453
.438
DESCRIPCION / REMARKS
90°
TYP.
BLACK DRAIN PLUGS IN
ENDSHIELD FOR DRAWING
OF CONDENSATE
4 LEADS, #18, .031 THICK INSULATION
TO EXTEND BEYOND MOTOR 48.000u1.5
(BLK, WHT, BRN & BRN /WHT)
NIDEC MOTOR CORPORATION 25-Jan-19
NIDEC MOTOR CORPORATION 25-Jan-19
ADDED WARNING LABEL
ISSUED BY :
ISSUED BY :
A. SAUCEDO
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
4 EXTRA NUTS
WITH CAPTIVE
STAR WASHERS
ECO E33529
J. RICE
8-32
THRD
.563 ±.0625
(4) 8-18 SCREWS SUPPLIED
IN (4) .120 - .124 MOTOR
SHELL HOLES AND RUN
IN BUT NOT TIGHT
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
WATER
SLINGER
WASHER SPRING
NAMEPLATE
WARNING LABEL
WARNING LABEL TO
BE ADJACENT TO
REVERSING LEADS.
REV.
A
AUX.
MAIN
T
O
R
L
P
E
Y
K
L
B
LINE
T
H
W
TO 7.5
YEL
PUR
T
H
W
/
N
R
B
PUR
BRN
MFD CAP.
MALE
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

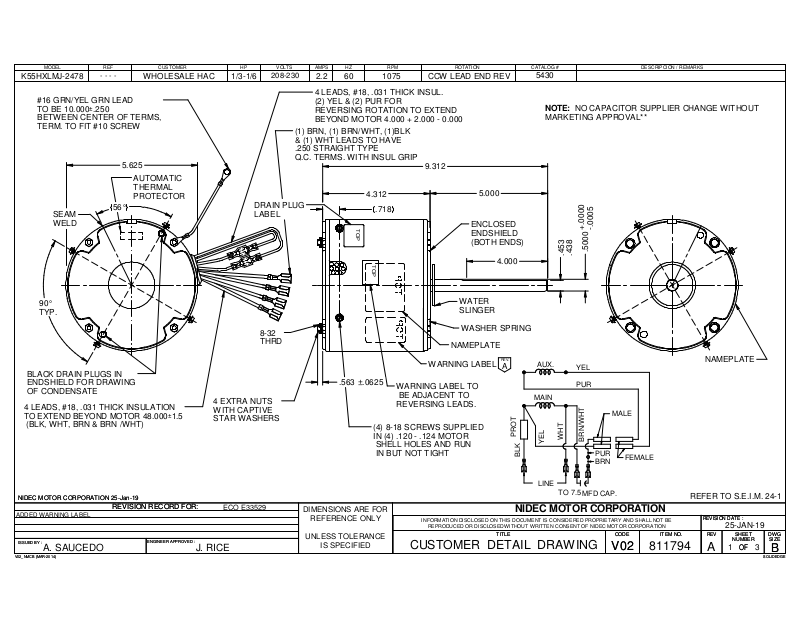

CUSTOMER DETAIL DRAWING
TITLE
TITLE
V02
V02
FEMALE
CODE ITEM NO.
CODE ITEM NO.
811794
NAMEPLATE
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
25-JAN-19
REV
REV
A
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
