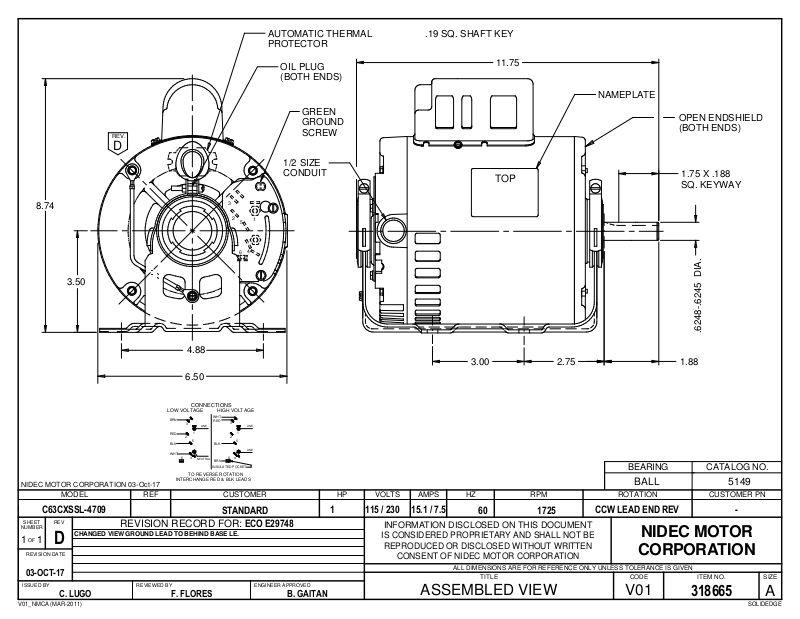

US Motors 5149 Dimensional Sheet

AUTOMATIC THERMAL
PROTECTOR

.19 SQ. SHAFT KEY

8.74

3.50

REV.

D

4.88

6.50

OIL PLUG

11.75

(BOTH ENDS)

NAMEPLATE

GREEN
GROUND
SCREW

OPEN ENDSHIELD
(BOTH ENDS)

1/2 SIZE
CONDUIT

3

2

1

5

4

6

TOP

1.75 X .188
SQ. KEYWAY

.6248-.6245 DIA.

3.00 2.75

1.88

NIDEC MOTOR CORPORATION 03-Oct-17

MODEL REF

C63CXSSL-4709

SHEET

NUMBER

1 1

REV

OF

D

REVISION DATE

CHANGED VIEW GROUND LEAD TO BEHIND BASE LE.

REVISION RECORD FOR:

03-OCT-17

ISSUED BY

REVIEWED BY ENGINEER APPROVED

C. LUGO

CONNECTIONS

LOW VOLTAGE

BRN

3

RED

2

BLK

WHT

6

INTERCHANGE RED & BLK LEADS

HIGH VOLTAGE

WHT
RED

3

LINE

1

5

4

NEUTRAL

TO REVERSE ROTATION

2

BLK

6

4

BRN

INSULATED POCKET

LINE

1

5

LINE

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

STANDARD

ECO E29748

F. FLORES B. GAITAN

1 115 / 230 15.1 / 7.5

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ASSEMBLED VIEW

BEARING

BALL

60 1725

CCW LEAD END REV -

NIDEC MOTOR

CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

V01

CATALOG NO.

5149

CUSTOMER PN

318665

A

SOLIDEDGEV01_NMCA (MAR-2011)
