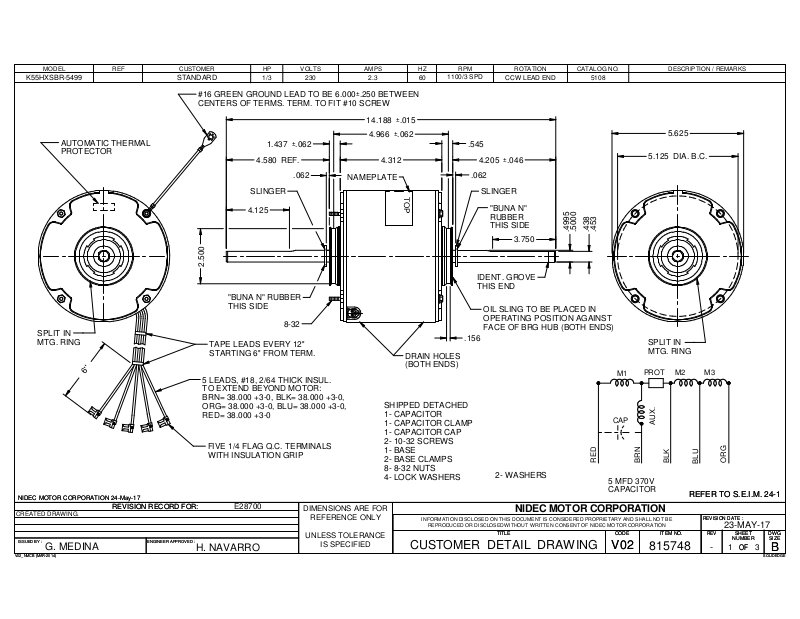

US Motors 5108 Dimensional Sheet
K55HXSBR-5499
REF
AUTOMATIC THERMAL
PROTECTOR
SPLIT IN
MTG. RING
'
'
6
NIDEC MOTOR CORPORATION 24-May-17
NIDEC MOTOR CORPORATION 24-May-17
CREATED DRAWING.
ISSUED BY :
ISSUED BY :
G. MEDINA
REVISION RECORD FOR:
REVISION RECORD FOR:
CUSTOMER
STANDARD
ENGINEER APPROVED :
ENGINEER APPROVED :
HPMODEL CATALOG NO.
1/3 602.3
VOLTS
230
AMPS
#16 GREEN GROUND LEAD TO BE 6.000u.250 BETWEEN
CENTERS OF TERMS. TERM. TO FIT #10 SCREW
14.188u.015
4.966u.062
1.437u.062
4.580 REF.
SLINGER
.062
NAMEPLATE
4.312
TOP
4.125
2.500
"BUNA N" RUBBER
THIS SIDE
8-32
TAPE LEADS EVERY 12''
STARTING 6'' FROM TERM.
DRAIN HOLES
(BOTH ENDS)
5 LEADS, #18, 2/64 THICK INSUL.
TO EXTEND BEYOND MOTOR:
BRN= 38.000 +3-0, BLK= 38.000 +3-0,
ORG= 38.000 +3-0, BLU= 38.000 +3-0,
RED= 38.000 +3-0
SHIPPED DETACHED
1- CAPACITOR
1- CAPACITOR CLAMP
1- CAPACITOR CAP
FIVE 1/4 FLAG Q.C. TERMINALS
WITH INSULATION GRIP
2- 10-32 SCREWS
1- BASE
2- BASE CLAMPS
8- 8-32 NUTS
4- LOCK WASHERS
E28700
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
H. NAVARRO
IS SPECIFIED
HZ
RPM
1100/3 SPD
ROTATION
CCW LEAD END
5108
.545
4.205u.046
.062
SLINGER
"BUNA N"
RUBBER
THIS SIDE
.4995
.5000
.438
.453
3.750
IDENT. GROVE
THIS END
OIL SLING TO BE PLACED IN
OPERATING POSITION AGAINST
FACE OF BRG HUB (BOTH ENDS)
.156
M1
CAP
2- WASHERS
D
E
R
5 MFD 370V
N
R
B
CAPACITOR
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
DESCRIPTION / REMARKS
5.625
5.125 DIA. B.C.
SPLIT IN
MTG. RING
M2
PROT
.
X
U
A
K
L
B
REFER TO S.E.I.M. 24-1
REFER TO S.E.I.M. 24-1
815748
M3
U
L
B
REVISION DATE :
REVISION DATE :
23-MAY-17
REV
REV
-
ORG
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
