Page 1
MODEL REF
K55HXSBK-7724
#16 GREEN GROUND LEAD TO BE
6.000±.250 BETWEEN CENTERS OF
TERMS. TERM. TO FIT #10 SCREW
CUSTOMER
STANDARD
HP
1/3 4961
VOLTS
AMPS
1.8
HZ
60
RPM
1625
ROTATION
CCW LEAD END REV230
CUSTOMER PT. NO.
10.652 ±.062
K55 RES. MTD, BALL BRG, OPEN
DESCRIPTION / REMARKS
AUTOMATIC THERMAL
PROTECTOR
5.812( )
3.000 ±.062
2.375 2.375
5.625
4 LEADS,#18,.031 THICK INSUL. TO
EXTEND BEYOND MOTOR
(2)YEL=4.500+2-0,(2) ORG=4.500+2-0
NIDEC MOTOR CORPORATION 13-Nov-18
NIDEC MOTOR CORPORATION 13-Nov-18
NEW DRAWING.
ISSUED BY :
ISSUED BY :
G. ISASSI
REVISION RECORD FOR:
REVISION RECORD FOR:
(2).250 FLAG O.C.
TERMS. WITH INSUL.
GRIP ON BRN LEADS
SPLIT IN
MTG. RING
4 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
BLK=20.000 +2 -0, WHT=20.000 +2 -0
BRN=20.000 +2 -0,
BRN / WHT STRIPE=20.000 +2 -0
ECO: E32643
ENGINEER APPROVED :
ENGINEER APPROVED :
Z. TREVIÑO
BUSHING
.750u.062
SKINNED
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
5.107( )
NAMEPLATE
+.125
1.000
-.000
TOP
T
O
P
.344
.844
.844
1.500
ARROW ON BASE
WARNING LABEL TO BE CENTERED
AND ADJACENT TO BUSHING
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

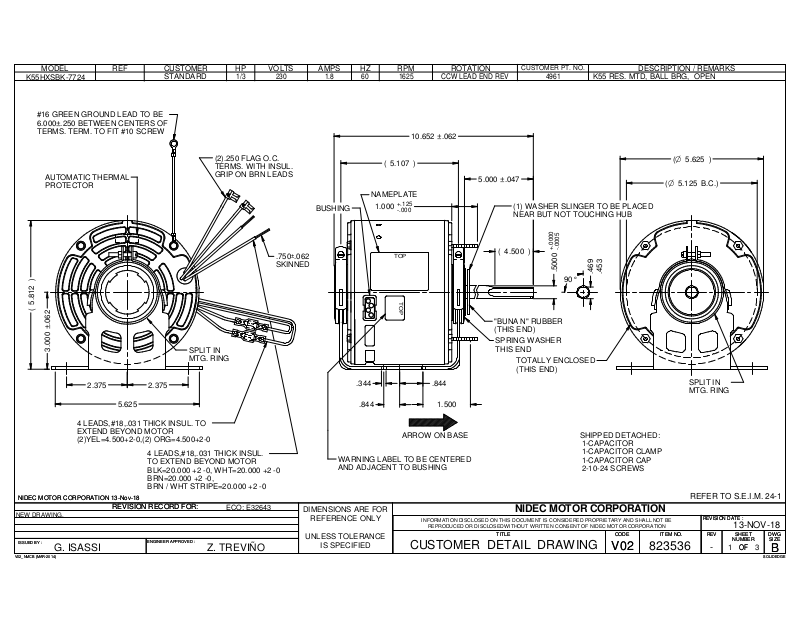

CUSTOMER DETAIL DRAWING
5.000 ±.047
(1) WASHER SLINGER TO BE PLACED
NEAR BUT NOT TOUCHING HUB
4.500( )
"BUNA N" RUBBER
(THIS END)
SPRING WASHER
THIS END
TOTALLY ENCLOSED
(THIS END)
NIDEC MOTOR CORPORATION
TITLE
TITLE
+.0000
-.0005
.5000
90°
.469
SHIPPED DETACHED:
1-CAPACITOR
1-CAPACITOR CLAMP
1-CAPACITOR CAP
2-10-24 SCREWS
.453
CODE ITEM NO.
CODE ITEM NO.
V02
V02
O
5.125(
O
823536
5.625(
)
B.C.)
SPLIT IN
MTG. RING
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
13-NOV-18
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
DWG
DWG
SIZE
SIZE
B
B
