US Motors 4960 Dimensional Sheet
MODEL
K55HXSBJ-1140
CUSTOMER
STANDARD
HP
1/3 602.2 1075
VOLTSREF
230
AMPS DESCRIPTION / REMARKS
HZ
RPM
ROTATION
CCW LEAD END REV
CATALOG NO.
4960
(2) .250 FLAG TYPE Q.C.
TERMS. WITH INSUL.
GRIP ON BROWN LEADS
#16 GRN. GRD. LEAD TO BE 6.000 u.250
BETWEEN CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
AUTOMATIC THERMAL
PROTECTOR
5.810
.062
u
REV.
3.000
A
SPLIT IN MTG. RING
4 LEADS, #18, .031 THICK INSUL.
(2) YELLOW & (2) ORANGE FOR
REVERSING ROTATION
4 LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
WHT= 20.000 +2 -0, BLK= 20.000 +2 -0,
BRN= 20.000 +2 -0, BRN/WHT STRIPE= 20.000 +2 -0
NIDEC MOTOR CORPORATION 17-Nov-17
NIDEC MOTOR CORPORATION 17-Nov-17
CHANGE DRAWING TO SHOW THAT THE GROUND WIRE IS ROUTED FROM INSIDE THE BASE
ISSUED BY :
ISSUED BY :
J. ALVARADO
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
R. CRUZ
ECO E29762
.750 u.062
SKINNED
ROTATION: C.CW. VIEWING LEAD END
WITH ORG TO ORG AND YEL TO YEL LEADS
TO REVERSE ROTATION REVERSE LEADS
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
10.902
+.125
1.000
-.000
NAMEPLATE
TOP
T
O
P
ARROW ON BASE
.125
WARNING LABEL TO BE CENTERED
AND ADJACENT TO GROMMET
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

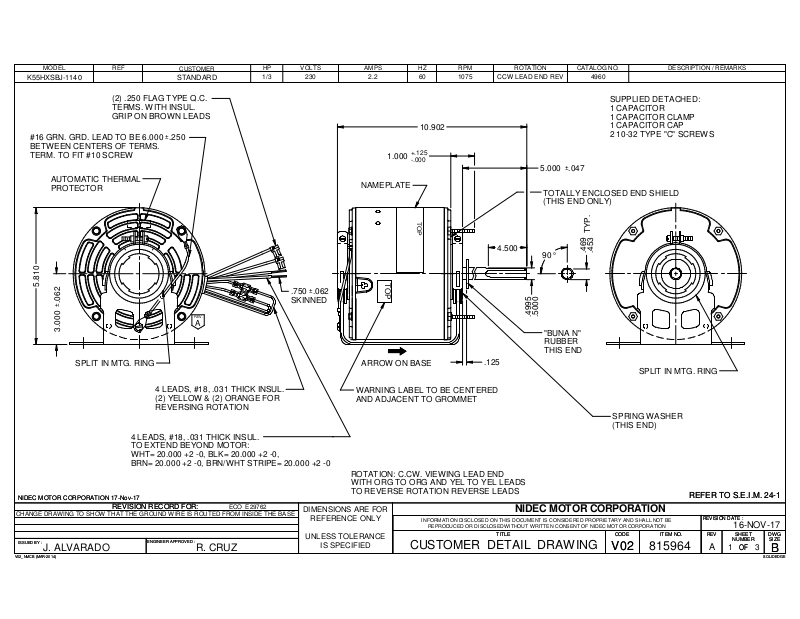

CUSTOMER DETAIL DRAWING
SUPPLIED DETACHED:
1 CAPACITOR
1 CAPACITOR CLAMP
1 CAPACITOR CAP
2 10-32 TYPE "C" SCREWS
5.000u.047
TOTALLY ENCLOSED END SHIELD
(THIS END ONLY)
TYP.
4.500
90°
.4995
.5000
.469
.453
"BUNA N"
RUBBER
THIS END
SPRING WASHER
(THIS END)
NIDEC MOTOR CORPORATION
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
SPLIT IN MTG. RING
REFER TO S.E.I.M. 24-1
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
815964
A
16-NOV-17
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
