US Motors 4895 Dimensional Sheet

B OF

B OF

MODEL

K55HXLLP-2461

REF

- - - -

CUSTOMER

WHOLESALE HAC 1/8

4 LEADS, #18, .031 THICK INSUL.
(2) YEL & (2) ORG FOR
REVERSING ROTATION TO EXTEND
BEYOND MOTOR 4.000 + 2.0 - 0.0

AUTOMATIC
THERMAL
PROTECTOR

HP

VOLTS

200-230

DRAIN PLUG
INSTRUCTION
LABEL

(4) 0.55+/-.062

AMPS

0.8

HZ RPM

60

1650

5.562

ROTATION

CCW LEAD END REV

2.000u0.047

.062

CATALOG #

4895

DESCRIPCION / REMARKS

SEAM
WELD

(1) .250 FLAG
TYPE Q.C.
TERMS

(3).250 STRAIGHT
TYPE Q.C.
TERMINALS WITH
INSUL. GRIP

NIDEC MOTOR CORPORATION 07-Sep-16

NIDEC MOTOR CORPORATION 07-Sep-16

I CHANGED THE NOTE OF THE STRAIGHT TERMINALS ON PAGE 2.
I ADDED THE CONNECTION DIAGRAM ON PAGE 3.

ISSUED BY :

ISSUED BY :

G. MEDINA

REVISION RECORD FOR:

REVISION RECORD FOR:

(4) LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR;
BLU=27 +2 - 0, BLK=27 +2 - 0,
BRN=27 +2 - 0, BRN/WHT=27 +2 - 0

ENGINEER APPROVED :

ENGINEER APPROVED :

8-32 UNC
THREAD

REVERSING
WARNING
LABEL

NAMEPLATE

SEE REQ. CRIT. #2

#18 GREEN / YELLOW GROUND LEAD TO BE

13.000 +/- .250 BETWEEN CENTERS OF
TERMINALS

ROTATION: C.CW LE REV.

ECO E26736

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

A. LOZANO

IS SPECIFIED

TOP

TYP.

.453

TOP

TOP

1.800

WATER
SLINGER

.438

SPRING WASHER
(THIS END)

BLU

BLK

YEL

ORG

MOTOR

ORG

YEL

BRN

BRN/WHT

ORG

CCW

YEL

ORG

CW

YEL

C

200-230 VOLTS

LINE

L1

4 MFD 370V
CAP

ORG
YEL
ORG
YEL

5.625

REFER TO S.E.I.M. 24-1

NIDEC MOTOR CORPORATION

REVISION DATE :

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

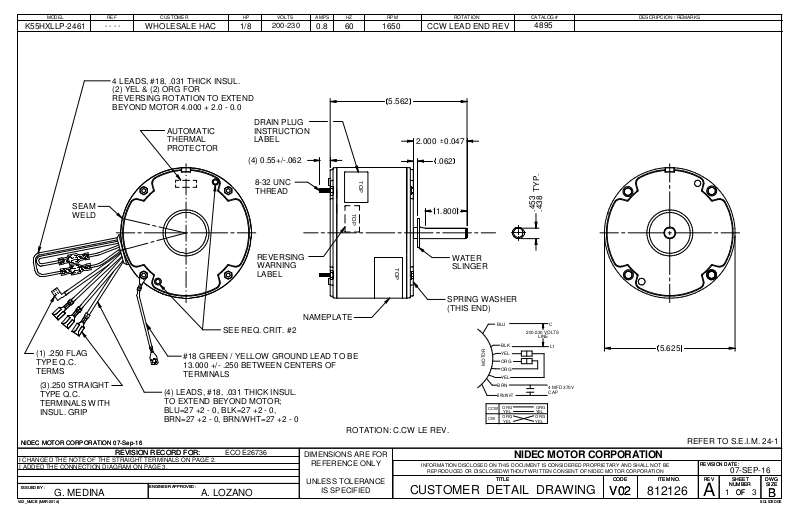

CUSTOMER DETAIL DRAWING

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

812126

REVISION DATE :

REV

REV

A

07-SEP-16

SHEET

SHEET

NUMBER

NUMBER

1 3

SOLIDEDGEV02_NMCB (MAR-2014)

SOLIDEDGEV02_NMCB (MAR-2014)

DWG

DWG

SIZE

SIZE
