Page 1
B OF
B OF
MODEL REF CUSTOMER
KA55HXSAY-7722
#16 GREEN GROUND LEAD
TO BE 6.000±.250 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
STANDARD
4811
4 LEADS #18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
BLK=20.000+2-0,WHT=20.000+2-0
BRN=20.000+2-0,BRN/WHT STRIPE=20.000+2-0
HP VOLTS AMPS HZ RPM
1/3
230
1.8
60
1625 CCW LE REV.
ROTATIONCAT NO.
10.652 ±.062
TOTALLY ENC.
ENDSHIELD
(THIS END)
DESCRIPTION / REMARKS
KA55 RES. MTD SELF - ALIGN BRG.
SHIPPED DETACHED
1-CAPACITOR
1-CAPACITOR CLAMP
1-CAPACITOR CAP
2-10-24 SCREWS
AUTOMATIC THERMAL
PROTECTOR
3.000 ±.062
5.125O±.015 B.C.
5.604 ±.015
O
NIDEC MOTOR CORPORATION 11-Sep-19
NIDEC MOTOR CORPORATION 11-Sep-19
THE RING DIAMETER VALUE WAS REMOVED
ISSUED BY :
ISSUED BY :
E. MARTINEZ
REVISION RECORD FOR:
REVISION RECORD FOR:
2.3752.375
ENGINEER APPROVED :
ENGINEER APPROVED :
(2).250 FLAG
TYPE Q.C. TERM.
WITH INSUL. GRIP
4
.
0
0
+
0
2
.
0
0
0
-
0
.
0
0
0
SPLIT IN
MTG. RING
WARNING LABEL TO BE
CENTERED AND ADJACENT
TO BUSHING
E35283
D. TEJEDA
4.562
NAMEPLATE
TOP
.750±.062
SKINNED
REV.
A
T
O
P
BUSHING
.344
.844.844
ARROW ON BASE
ROTATION: C.CW VIEWING LEAD END WITH ORG
TO ORG AND YEL TO YEL LEADS TO REVERSE
ROTATION, REVERSE LEADS.
DIMENSIONS ARE FOR
REFERENCE ONLY
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
UNLESS TOLERANCE
IS SPECIFIED

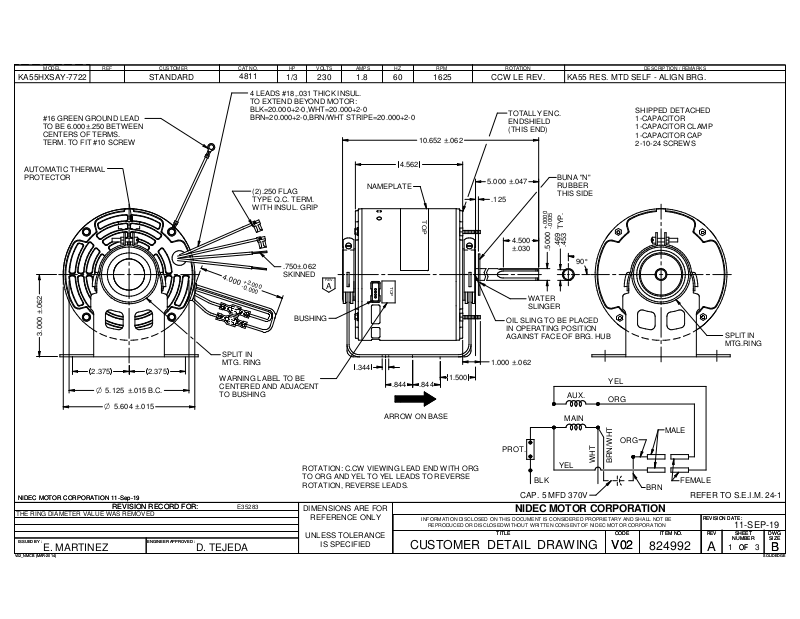

CUSTOMER DETAIL DRAWING
1.500
5.000 ±.047
.125
4.500
±.030
BUNA "N"
RUBBER
THIS SIDE
TYP.
+.0000
-.0005
.469
.5000
.453
90°
WATER
SLINGER
OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG. HUB
1.000 ±.062
AUX.
MAIN
PROT.
YEL
T
H
W
BLK
CAP. 5 MFD 370V
NIDEC MOTOR CORPORATION
TITLE
TITLE
YEL
ORG
T
H
ORG
W
/
N
R
B
BRN
CODE ITEM NO.
CODE ITEM NO.
V02
V02
824992
MALE
FEMALE
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
A
SPLIT IN
MTG.RING
11-SEP-19
SHEET
SHEET
NUMBER
NUMBER
1 3
DWG
DWG
SIZE
SIZE
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
