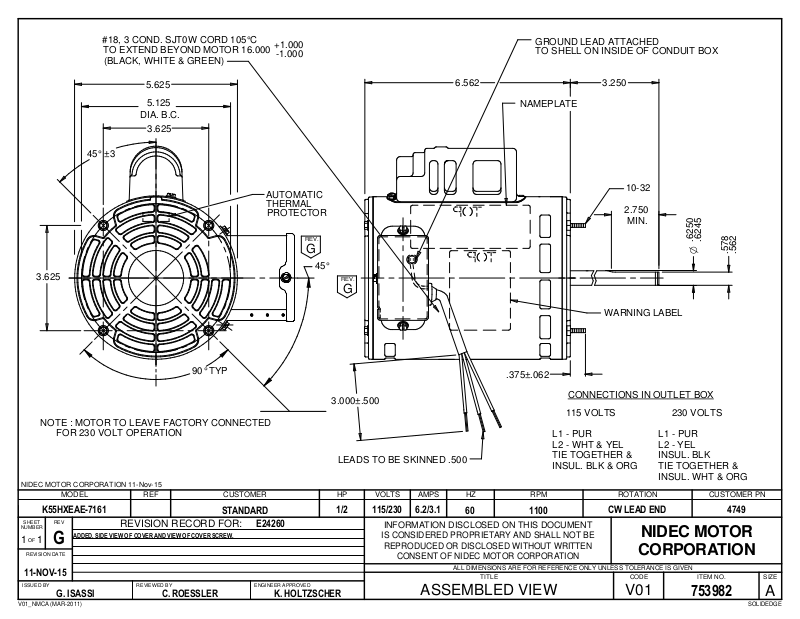

US Motors 4749 Dimensional Sheet

#18, 3 COND. SJT0W CORD 105°C

TO EXTEND BEYOND MOTOR 16.000

(BLACK, WHITE & GREEN)

+1.000

-1.000

GROUND LEAD ATTACHED
TO SHELL ON INSIDE OF CONDUIT BOX

3.625

45° ±3

5.625

5.125

DIA. B.C.

3.625

90° TYP

AUTOMATIC
THERMAL
PROTECTOR

REV.

G

45°

REV.

G

6.562

NAMEPLATE

.375±.062

3.250

10-32

2.750
MIN.

WARNING LABEL

.6250

.6245

.578

O

.562

NOTE : MOTOR TO LEAVE FACTORY CONNECTED
FOR 230 VOLT OPERATION

NIDEC MOTOR CORPORATION 11-Nov-15

K55HXEAE-7161

SHEET

NUMBER

1 1

REV

OF

G

REVISION DATE

MODEL REF

REVISION RECORD FOR:

ADDED, SIDE VIEW OF COVER AND VIEW OF COVER SCREW.

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

STANDARD

11-NOV-15

ISSUED BY

REVIEWED BY ENGINEER APPROVED

G. ISASSI

E24260

K. HOLTZSCHERC. ROESSLER

3.000±.500

LEADS TO BE SKINNED .500

6.2/3.1115/2301/2

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ASSEMBLED VIEW

CONNECTIONS IN OUTLET BOX

115 VOLTS

L1 - PUR
L2 - WHT & YEL
TIE TOGETHER &
INSUL. BLK & ORG

230 VOLTS

L1 - PUR
L2 - YEL
INSUL. BLK
TIE TOGETHER &
INSUL. WHT & ORG

110060

CW LEAD END

NIDEC MOTOR

CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

V01

CUSTOMER PN

753982

4749

A

SOLIDEDGEV01_NMCA (MAR-2011)
