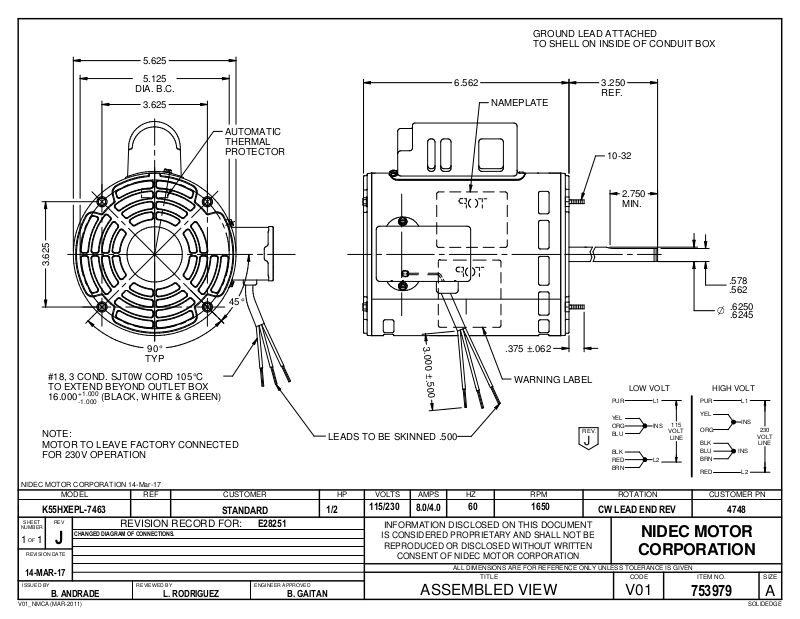

US Motors 4748 Dimensional Sheet

5.625

GROUND LEAD ATTACHED
TO SHELL ON INSIDE OF CONDUIT BOX

5.125

DIA. B.C.

3.625

AUTOMATIC
THERMAL
PROTECTOR

3.625

45°

90°

TYP

#18, 3 COND. SJT0W CORD 105°C
TO EXTEND BEYOND OUTLET BOX

+1.000

16.000 (BLACK, WHITE & GREEN)

-1.000

NOTE:
MOTOR TO LEAVE FACTORY CONNECTED
FOR 230V OPERATION

NIDEC MOTOR CORPORATION 14-Mar-17

K55HXEPL-7463

SHEET

NUMBER

1 1

REV

OF

J

REVISION DATE

MODEL REF

REVISION RECORD FOR:

CHANGED DIAGRAM OF CONNECTIONS.

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

STANDARD

E28251

14-MAR-17

ISSUED BY

REVIEWED BY ENGINEER APPROVED

B. ANDRADE L. RODRIGUEZ B. GAITAN

3
.

0
0

0

±
.

5
0

0

LEADS TO BE SKINNED .500

1/2

115/230

8.0/4.0

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ASSEMBLED VIEW

6.562 3.250
REF.

NAMEPLATE

10-32

2.750
MIN.

.375 ±.062

WARNING LABEL

LOW VOLT HIGH VOLT

60 1650

PUR

YEL
ORG

REV.

BLU

J

BLK
RED
BRN

CW LEAD END REV 4748

L1

INS

L2

115

VOLT

LINE

NIDEC MOTOR

CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

V01

O

PUR

YEL

ORG

BLK
BLU
BRN

RED L2

CUSTOMER PN

753979

.578
.562

.6250
.6245

L1

INS

INS

230

VOLT

LINE

A

SOLIDEDGEV01_NMCA (MAR-2011)
