V02 DAYTON HAC pg 1 English
MODEL REF CUSTOMER
K55HXEZS-7589 WHOLESALE HAC
HP VOLTS
1/3 115
AMPS HZ RPM
4.0
60 1650
ROTATION
CUSTOMER PN
CCW LEAD END REV 4745
K55 STUD MOUNT BALL BRG. OPEN ALL ANGLE
DESCRIPTION / REMARKS
(4) LEADS #18 .031 INSUL
(2) YELLOW, (2) ORANGE
FOR REVERSING ROTATION
3
±
°
5
4
GROUND LEAD ATTACHED
TO INSIDE OF L.E. ENSHIELD
NIDEC MOTOR CORPORATION 31-Aug-15
NIDEC MOTOR CORPORATION 31-Aug-15
CREATED DRAWING.
ISSUED BY :
ISSUED BY :
B. ANDRADE
REVISION RECORD FOR:
REVISION RECORD FOR:
AUTOMATIC
THERMAL
PROTECTOR
3
.
0
0
0
ENGINEER APPROVED :
ENGINEER APPROVED :
LEADS
EXIT
HERE
±
.
5
0
0
LEADS TO BE
SKINNED .500
JC 70241
A. VILLANUEVA
9.312 ±.062
WARNING LABEL TO BE ADJACENT
TO REVERSING LEADS
6.062 ±.062
WARNING
LABEL
.375 ±.062
#18, 3 COND. SJT0W CORD 105°C
TO EXTEND BEYOND MOTOR
15.000 +3.000 -0.000
(BLACK, WHITE & GREEN)
ROTATION IS C.CW VIEWING LEAD END
W/ ORG. TO ORG. & YEL. TO YEL. TO REVERSE
ROTATION INTERCHANGE ORG. & YEL. LEADS
TOLERANCES ON DIMENSIONS
(UNLESS OTHERWISE SPECIFIED)
INCHES
.XX = ± .010
.XXX = ±.005
ANGLES X°= ±1°
mm
5.625
5.125
SEE CRIT. REQ. #2
NAMEPLATE
3.250 ±.047
2.750
.453
.4998
.4995
.438
PROT.
L1 TO BLK
L2 TO WHT
BLK
4
5
°
AUX.
MAIN
YELLOW
CAPACITOR
R
E
F
.
YELLOW
E
T
I
H
W
TO
ORANGE
BRN/WHT
STRIPE
ORANGE
MALE
BROWN
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

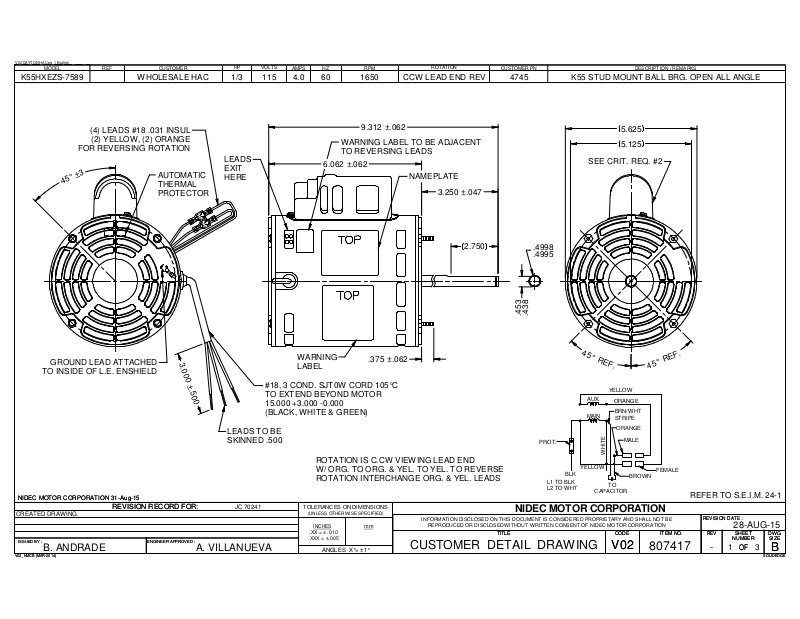

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
.
F
E
R
°
5
4
FEMALE
807417
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
28-AUG-15
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
