Page 1
THERMAL PROTECTOR
(SEE CHART)
5.625
EXTRA NUT, FLAT
AND CUPPED WASHER
ON EACH TERM STUD
2 COMB. Q.C &
TERM. STUDS &
3. Q.C. TERM
"C"
NAMEPLATE
DIA
+.0000
-.0005
XO
D
GROUND LEAD
C
11.312
GREEN GROUND
SCREW
3
2
1
5
4
6
GROUND STRIP
OPP. END
D 2F BA
3
2.750 1.875
CONDUIT PLUG
1/2-14 N.P.S. THR'D
SPLIT IN
MTG. RING
N-W
2.500
.344
STARTING
SWITCH END
XO
7.406
PROTECTOR
AUTOMATIC
TOP
.625
BA2F
CAT. NO.
431
NIDEC MOTOR CORPORATION 10-Oct-12
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
CA55CXTZ-431 -
SHEET
NUMBER
1 1
REV
OF
G
REVISION DATE
UPDATED ENGINEER APPROVED TO B. GAITAN.
REVISION RECORD FOR:
STANDARD
C6401-00
10-OCT-12
ISSUED BY
REVIEWED BY ENGINEER APPROVED
R. MORALES M. LARGENT B. GAITAN
TAPE SHAFT KEY TO MOTOR
115/208-230
1
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
REV.
G
11.6/5.8
CONSENT OF NIDEC MOTOR CORPORATION
60
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
3450

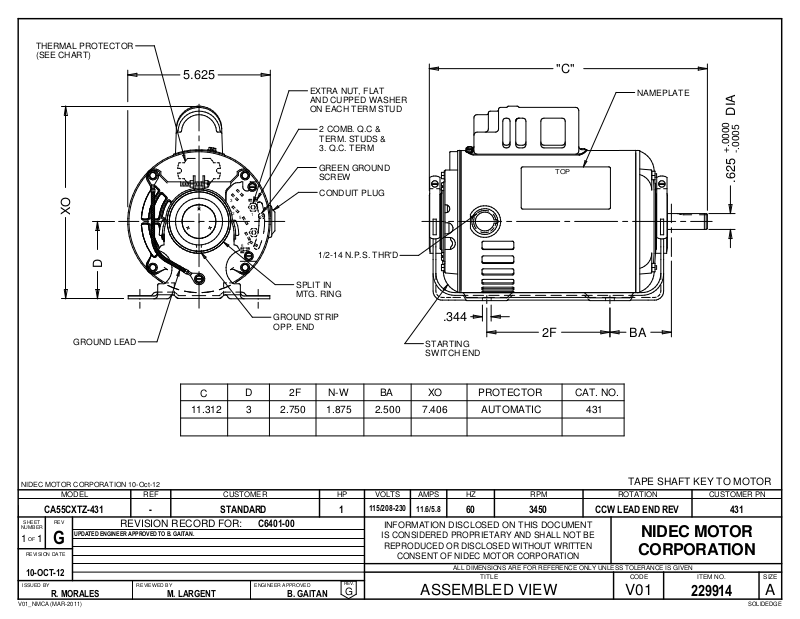

ASSEMBLED VIEW
CCW LEAD END REV 431
NIDEC MOTOR
CORPORATION
V01
229914
A
SOLIDEDGEV01_NMCA (MAR-2011)
