B OF
B OF
MODEL
K48ZZTTF-4137
(3) HOLES .281 DIA.
ON 8.500 DIA. B.C.
AUTOMATIC
THERMAL
PROTECTOR
SEAM WELD
REF
-----------
CUSTOMER
STANDARD
2 LEADS WITH .250
FLAG TERMINALS
HP ROTATION
1/20
VOLTS
277
AMPS
0.55
HZ
60
RPM
1075/3 SPD
C.CW. LEAD END
11.058
4.312
6.746 ±.047
NAMEPLATE
T
O
P
4 LEADS
.750 SKINNED
CUST. PT. NO
4137
2.000 REF.
REF.
+.0000
-.0005
.500
.047
DESCRIPTION / REMARKS
4.906
4.464O B.C.
6 LEADS #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
YELLOW=48.000+2-0. BLACK=48.000+2-0,
BLUE=48.000+2-0, RED=48.000+2-0,
BROWN=10.000u1.000,
8.500 REF.
BROWN/WHITE=10.000u1.000
1/2 M1 A
T
H
W
/
L
N
E
R
Y
B
CAP.
1/2 M1 B
.
X
U
A
N
W
O
R
B
PROT.
M-2 M-3
K
C
A
L
B
E
U
L
B
D
E
R
4MDF,370V
NIDEC MOTOR CORPORATION 04-Dec-18
NIDEC MOTOR CORPORATION 04-Dec-18
REVISION RECORD FOR:
CREATED NEW DRAWING
ISSUED BY :
ISSUED BY :
F. GARCIA
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
P. RODRIGUEZ
ECO: E32195
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITT EN CONSENT OF NIDEC MOTOR CORPORATION

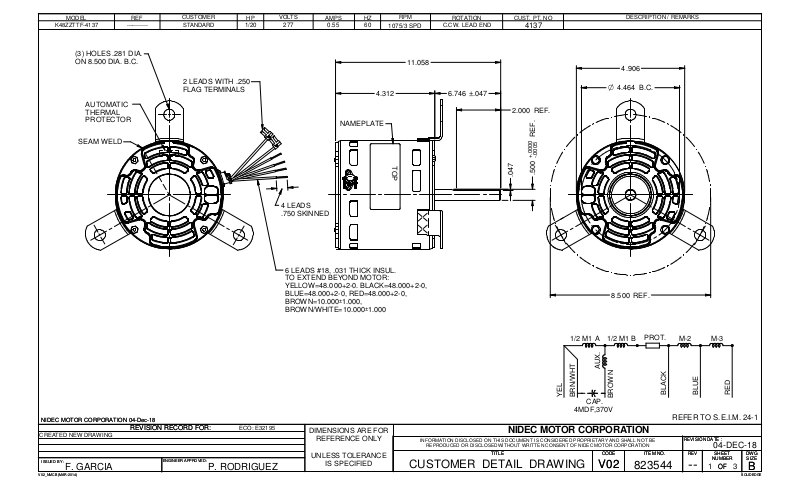

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
823544
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
04-DEC-18
REV
REV
--
SHEET
SHEET
NUMBER
NUMBER
1 3
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
