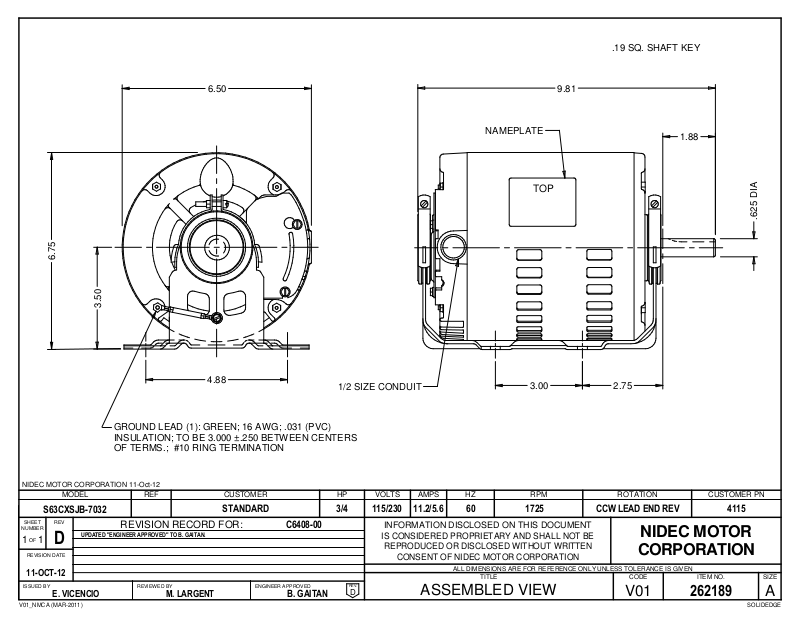

US Motors 4115 Dimensional Sheet

.19 SQ. SHAFT KEY

6.50

NAMEPLATE

9.81

1.88

TOP

.625 DIA

6.75

3.50

4.88
1/2 SIZE CONDUIT

3.00 2.75

GROUND LEAD (1): GREEN; 16 AWG; .031 (PVC)
INSULATION; TO BE 3.000 ±.250 BETWEEN CENTERS
OF TERMS.; #10 RING TERMINATION

NIDEC MOTOR CORPORATION 11-Oct-12

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN

S63CXSJB-7032

SHEET

NUMBER

1 1

REV

OF

D

REVISION DATE

UPDATED "ENGINEER APPROVED" TO B. GAITAN.

REVISION RECORD FOR:

11-OCT-12

ISSUED BY

REVIEWED BY ENGINEER APPROVED

E. VICENCIO

M. LARGENT

STANDARD

C6408-00

B. GAITAN

REV.

115/2303/4

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

D

11.2/5.6

INFORMATION DISCLOSED ON THIS DOCUMENT

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ASSEMBLED VIEW

60

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

1725

CCW LEAD END REV

NIDEC MOTOR

CORPORATION

V01

262189

4115

A

SOLIDEDGEV01_NMCA (MAR-2011)
