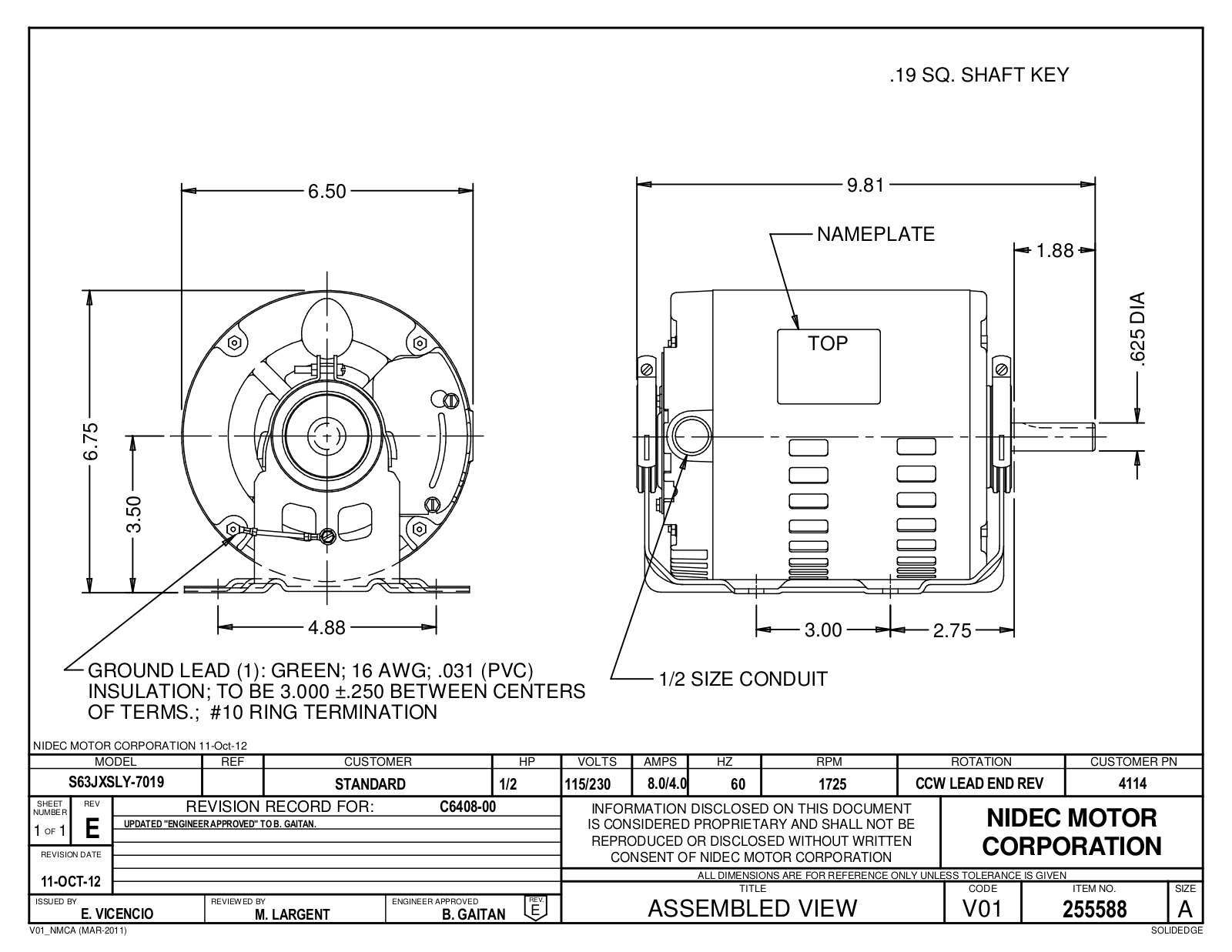

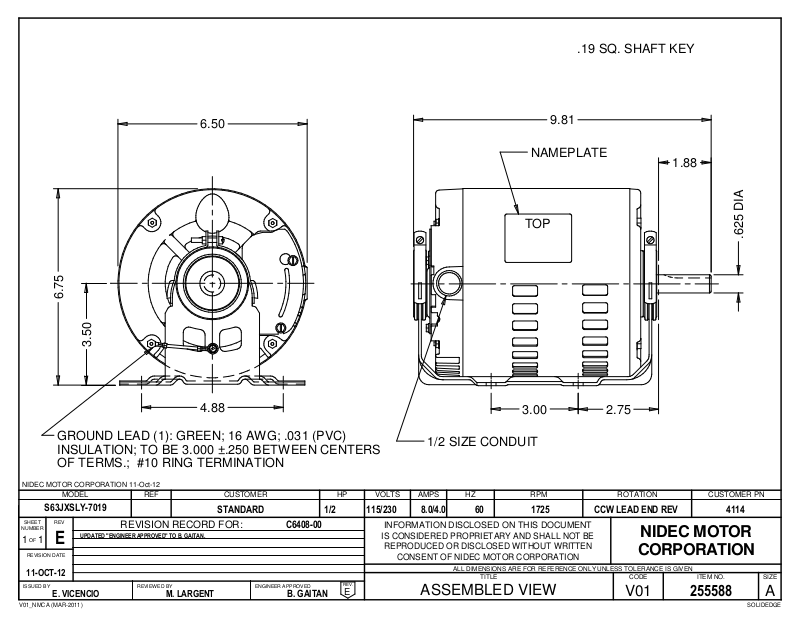

US Motors 4114 Dimensional Sheet

.19 SQ. SHAFT KEY

6.50

9.81

NAMEPLATE

1.88

TOP

.625 DIA

6.75

3.50

4.88

3.00

2.75

GROUND LEAD (1): GREEN; 16 AWG; .031 (PVC)
INSULATION; TO BE 3.000 ±.250 BETWEEN CENTERS
OF TERMS.; #10 RING TERMINATION

NIDEC MOTOR CORPORATION 11-Oct-12

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN

S63JXSLY-7019

SHEET

NUMBER

1 1

ISSUED BY

REV

OF

E

REVISION DATE

11-OCT-12

E. VICENCIO

REVISION RECORD FOR:

UPDATED "ENGINEER APPROVED" TO B. GAITAN.

REVIEWED BY ENGINEER APPROVED

M. LARGENT

STANDARD

C6408-00

B. GAITAN

1/2 115/230

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

REV.

E

1/2 SIZE CONDUIT

8.0/4.0

CONSENT OF NIDEC MOTOR CORPORATION

60 1725

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

ASSEMBLED VIEW

CCW LEAD END REV 4114

NIDEC MOTOR

CORPORATION

V01

255588

A

SOLIDEDGEV01_NMCA (MAR-2011)
