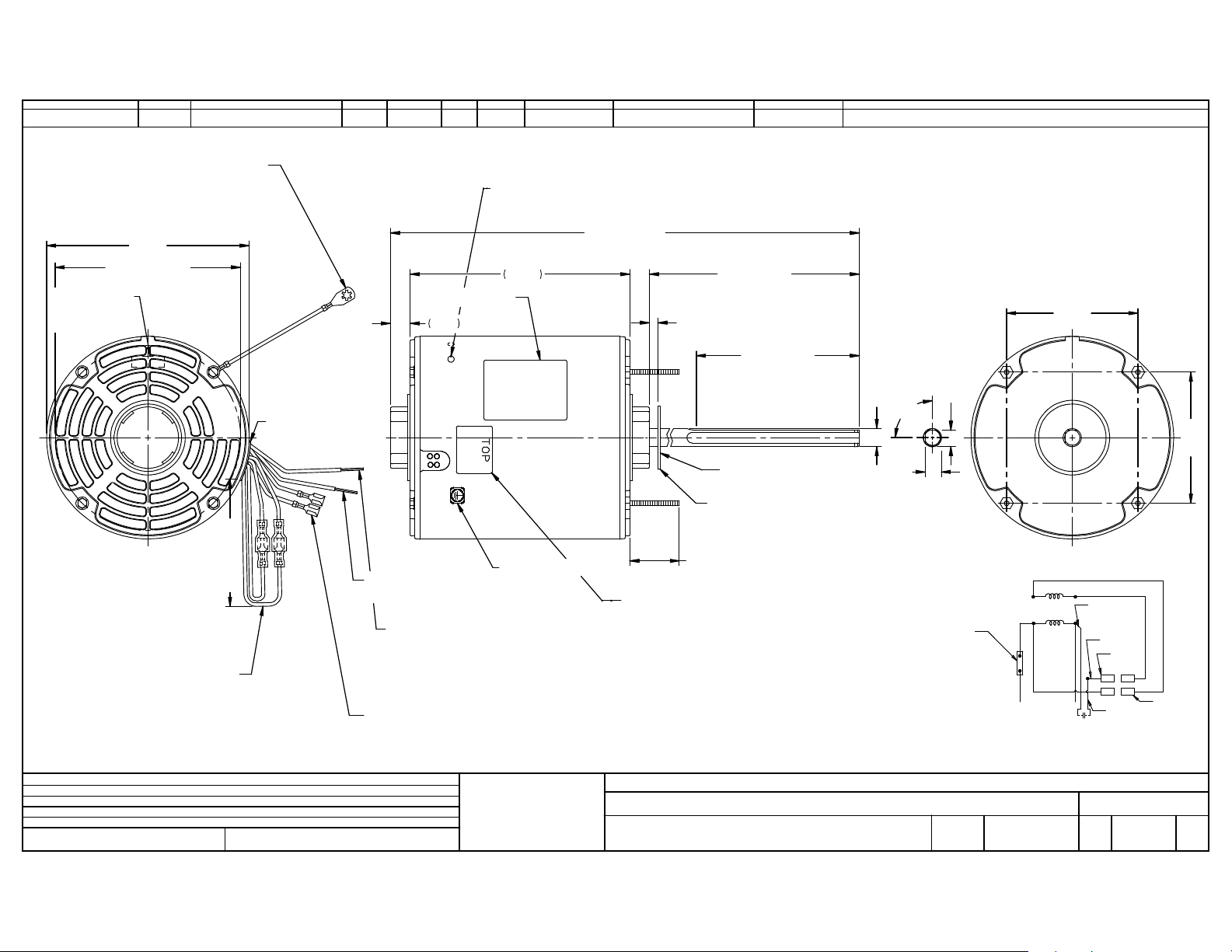

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUST. PT. NO.
KA55HXSMK-1777
----
STANDARD
1/2
208-230 3.1
60
1075
C.CW LEAD END REV.
#16 GREEN GROUND LEAD TO
BE 12.000u.125 BETWEEN
CENTERS OF TERMS. TERM.
TO FIT #10 SCREW
(2) .166 DIA. HOLES FOR
MOUNTING CAPACITOR
3852
DESCRIPTION / REMARKS
5.625
5.125OB.C.
AUTOMATIC
THERMAL
PROTECTOR
(4) LEADS #18, .031 THICK INSUL.
(2) YELLOW & (2) ORANGE FOR
REVERSING ROTATION LEADS
TO BE PROTECTED WITH A
8 HOLES GROMMET
NIDEC MOTOR CORPORATION 04-Feb-19
NIDEC MOTOR CORPORATION 04-Feb-19
CREATED NEW DRAWING
ISSUED BY :
ISSUED BY :
F. GARCIA
REVISION RECORD FOR:
REVISION RECORD FOR:
GROMMET
+2.000
-.000
4.000
ENGINEER APPROVED :
ENGINEER APPROVED :
LEADS SKINNED
.750u.062
(2) .250 STRAIGHT TYPQ Q.C.
TERMS. WITH INSUL. GRIP
ON BRN LEADS
ECO: E32862
M. DE LEON
10.900 ±.062
NAMEPLATE
.545
.125
TOP
"BUNA N" RUBBER
THIS SIDE
SEE CRIT. REQ. #3
1.000
WARNING LABEL TO BE
CENTERED ADJACENT TO
4 LEADS #18, .031 THICK INSUL.
LEAD HOLE
TO EXTEND BEYOND MOTOR:
BLK=30.000+2-0, WHT=30.000+2-0,
BRN=30.000+2-0, BRN/WHT STRIPE=30.000+2-0,
LEADS TO BE PROTECTED WITH A 8 HOLES GROMMET
ROTATION IS C.CW. VIEWING LEAD EN WITH
ORG. TO ORG. & YEL. TO YEL. TO REVERSE
ROTATION INTERCHANGE ORG. & YEL. LEADS
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

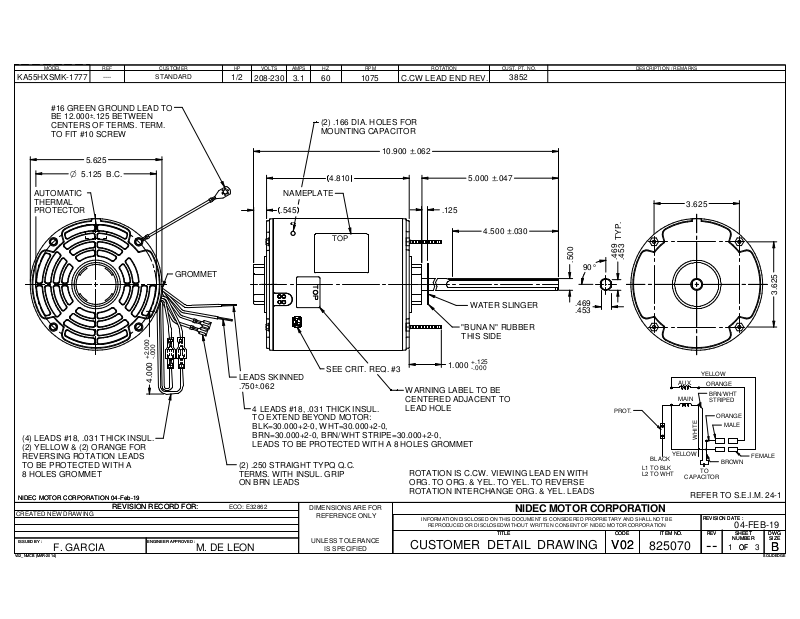

CUSTOMER DETAIL DRAWING
5.000 ±.0474.810
4.500 ±.030
WATER SLINGER
+.125
-.000
NIDEC MOTOR CORPORATION
TITLE
TITLE
.500
.469
.453
90°
TYP.
.469
.453
PROT.
BLACK
L1 TO BLK
L2 TO WHT
CODE ITEM NO.
CODE ITEM NO.
V02
V02
825070
3.625
YELLOW
AUX.
ORANGE
MAIN
YELLOW
BRN/WHT
STRIPED
E
T
I
H
W
TO
CAPACITOR
ORANGE
MALE
BROWN
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
--
04-FEB-19
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
FEMALE
SOLIDEDGEV02_NMCB (MAR-2014)
