US Motors 3848 Dimensional Sheet

Download

Page 1

B OF

MODEL REF CUSTOMER

KA55KXSAP-1139

#16 GREEN GROUND LEAD TO BE

6.000±.250 BETWEEN CENTERS OF TERMS. TERM. TO FIT #10 SCREW.

AUTOMATIC THERMAL PROTECTOR

STANDARD

4 LEADS #18,.031; THICK INSUL. TO EXTEND BETOND MOTOR: BLACK=20.000+2-0,WHITE=20.000+2-0 BROWN=20.000+2-0 BRN/WHT=20.000+2-0

3848

26° REF.

HP VOLTS AMPS HZ RPM

1/2

230

3.1

12.027 ±.062

5.937

(2) .250 FLAG Q.C. TERMS WITH INSUL.GRIP ON BROWN LEADS.

NAMEPLATE

BUSHING

TOP

1075 CCW LE REV.

ROTATIONCAT NO.

STATOR CORE LOCATION

+.000

1.000

-.031

5.000 ±.047

.125

8-32 NC THR´D ON 5.125 B.C.

4.50 ±.030

DESCRIPTION / REMARKS

KA55 RES. MTG. S/A SLEEVE BRG. HUB.

SHIPPED DETACHED 1-CAPACITOR 1-CAPACITOR CLAMP 1-CAPACITOR CAP 2-10-24 SCREWS

TYP.

5.802 ±.062

3.000 REF.

2.09 2.09

5.125 ±.015OB.C.

5.604 ±.015

SPLIT IN MTG. RING

NIDEC MOTOR CORPORATION 11-Sep-19

THE RING DIAMETER VALUE WAS REMOVED

ISSUED BY :

E. MARTINEZ

REVISION RECORD FOR:

ENGINEER APPROVED :

4 LEADS #18,.031 THICK INSUL. (2) ORANGE=4.500 +2-0, (2) YELLOW=4.500 +2-0.

E35283

D. TEJEDA

REV.

.34

T O

1.38

2.50

ARROW ON BASE

ROTATION: C.CW VIEWING LEAD END WITH ORG TO ORG AND YEL TO YEL LEADS TO REVERSE ROTATION, CONNECT ORG TO YEL.

DIMENSIONS ARE FOR

REFERENCE ONLY

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

UNLESS TOLERANCE

IS SPECIFIED

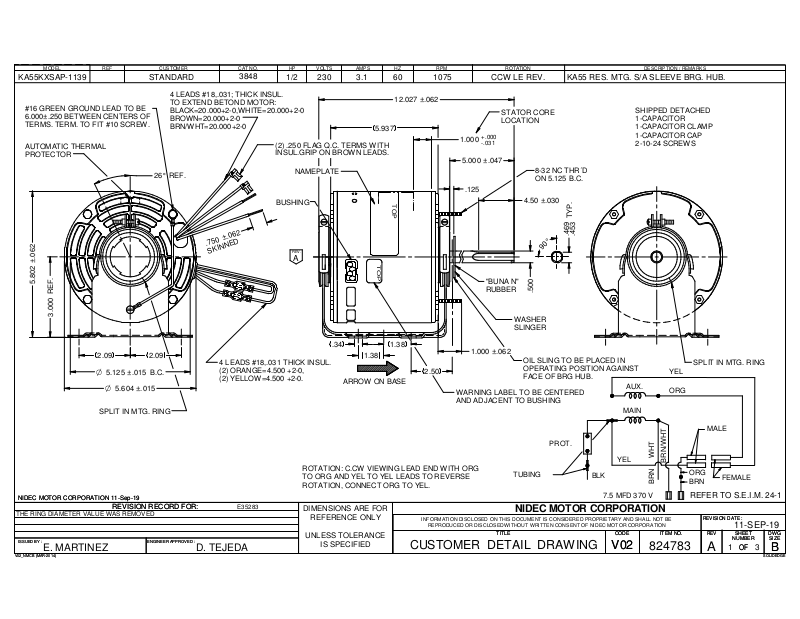

CUSTOMER DETAIL DRAWING

.469

.453

"BUNA N" RUBBER

.500

WASHER SLINGER

1.000 ±.062 OIL SLING TO BE PLACED IN

OPERATING POSITION AGAINST FACE OF BRG HUB.

WARNING LABEL TO BE CENTERED AND ADJACENT TO BUSHING

PROT.

TUBING

NIDEC MOTOR CORPORATION

TITLE

AUX.

MAIN

YEL

BLK

7.5 MFD 370 V

CODE ITEM NO.

V02

YEL

ORG

T H

N R

N R B

824783

SPLIT IN MTG. RING

MALE

ORG BRN

FEMALE

REFER TO S.E.I.M. 24-1

REVISION DATE :

REV

11-SEP-19

SHEET

NUMBER

1 3

DWG

SIZE

SOLIDEDGEV02_NMCB (MAR-2014)
