B OF
B OF
MODEL REF CUSTOMER
K55HXSAN-1138
STANDARD
3847
HP VOLTS AMPS HZ RPM
1/3
230
2.2
60
1075 CCW LE REV.
ROTATIONCUSTOMER PN
DESCRIPTION / REMARKS
KA55 STUD OR RES. MTD. SELF ALIGN BRG. OPEN
AUTOMATIC THERMAL
PROTECTOR
5.604O±.015
5.125O±.015 B.C.
5.802 ±.062
3.000 ±.062
2.38 2.38
5.63
SPLIT IN MTG. RING
#16 GREEN GROUND TO BE
6.000±.250 BETWEEN
CENTERS OF TERMS.
TERM TO FIT #10 SCREW
NIDEC MOTOR CORPORATION 11-Sep-19
NIDEC MOTOR CORPORATION 11-Sep-19
THE RING DIAMETER VALUE WAS REMOVED
ISSUED BY :
ISSUED BY :
E. MARTINEZ
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
4 LEADS #18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
WHT=20.000+2-0,BLK=20.000+2-0
BRN=20.000+2-0
BRN/WHT STRIPE=20.000+2-0
(2).250 FLAG TYPE Q.C.
TERMS. WITH INSUL.
GRIP.
ON BROWN LEADS
.750±.062
SKINNED
WARNING LABEL
TO BE CENTERED
AND ADJACENT
TO GROMMET
4 LEADS #18,.031 THICK INSUL.
2 YELLOW & 2 ORANGE FOR
REVERSING ROTATION
ROTATION: C.CW. VIEWING LEAD END
WITH ORG TO ORG AND YEL TO YEL LEADS,
TO REVERSE ROTATION, REVERSE LEADS.
E35283
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
D. TEJEDA
REV.
A
IS SPECIFIED
10.902 ±.062
4.812
NAMEPLATE
TOP
T
O
P
.34
.84 .84
ARROW ON BASE
TUBING
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

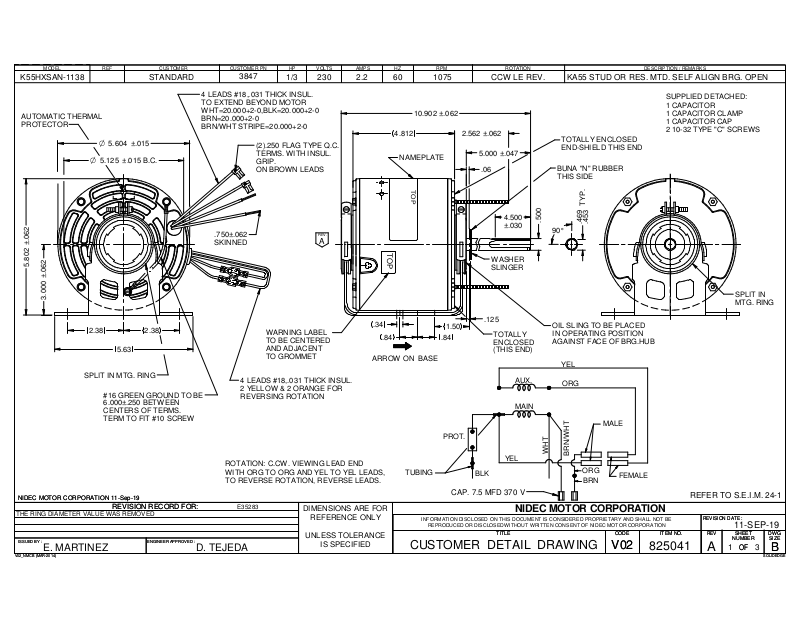

CUSTOMER DETAIL DRAWING
2.562 ±.062
5.000 ±.047
.06
WASHER
SLINGER
1.50
PROT.
.125
BLK
TOTALLY
ENCLOSED
(THIS END)
CAP. 7.5 MFD 370 V
TITLE
TITLE
TOTALLY ENCLOSED
END-SHIELD THIS END
BUNA "N" RUBBER
THIS SIDE
TYP.
4.500
±.030
YEL
AUX.
MAIN
.500
90°
OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG.HUB
T
H
W
YEL
ORG
.469
.453
T
H
W
/
N
R
B
ORG
BRN
MALE
FEMALE
NIDEC MOTOR CORPORATION
CODE ITEM NO.
CODE ITEM NO.
V02
V02
SUPPLIED DETACHED:
1 CAPACITOR
1 CAPACITOR CLAMP
1 CAPACITOR CAP
2 10-32 TYPE "C" SCREWS
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
825041
A
SPLIT IN
MTG. RING
11-SEP-19
SHEET
SHEET
NUMBER
NUMBER
1 3
DWG
DWG
SIZE
SIZE
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
