Page 1
MODEL REF
KA55HXSAM-1137
#16 GREEN GROUND LEAD TO BE
6.000±.250 BETWEEN CENTERS OF
TERMS. TERM. TO FIT #10 SCREW.
AUTOMATIC
THERMAL
PROTECTOR
CUSTOMER
STANDARD
HP
1/4
VOLTS
230
(2).250 FLAG TYPE
Q.C. TERM. WITH INSUL.
GRIP ON BRN. LEADS.
.750±.062
SKINNED
AMPS
1.9
HZ
60
RPM
1075
4.857( )
NAMEPLATE
TOP
ROTATION
CCW LEAD END REV
10.402 ±.062
CUSTOMER PT. NO.
5.000 ±.047
+.125
1.000
-.000
4.500( )
3846
DESCRIPTION / REMARKS
SHIPPED DETACHED:
1 CAPACITOR
1 CAPACITOR CLAMP
1 CAPACITOR CAP
2 10-32 TYPE "C" SCREWS
5.625(
O
5.125(
O
.500
90°
.469 TYP.
.453
)
B.C.)
5.810( )
3.000 ±.062
2.380 2.380
SPLIT IN MTG. RING
NIDEC MOTOR CORPORATION 12-Dec-18
NIDEC MOTOR CORPORATION 12-Dec-18
NEW DRAWING.
ISSUED BY :
ISSUED BY :
G. ISASSI
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
WARNING LABEL
TO BE CENTERED
AND ADJACENT
TO GROMMET
4 LEADS,#18,.031 THICK INSUL.
(2) YELLOW & (2) ORANGE FOR
REVERSING ROTATION
4 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
WHT=20.000 +2 -0 ,BLK=20.000 +2 -0
BRN=20.000 +2 -0,
BRN/WHT STRIPE=20.000 +2 -0
ECO: E32641
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
Z. TREVIÑO
IS SPECIFIED
2.500
T
O
P
WASHER SLINGER
AND "BUNA N"
RUBBER THIS SIDE
.34
.84
.84
1.50
OIL SLING TO BE PLACED
IN OPERATING POSITION
SPLIT IN MTG. RING
AGAINST FACE OF BRG. HUB
ARROW ON BASE
REFER TO S.E.I.M. 24-1
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

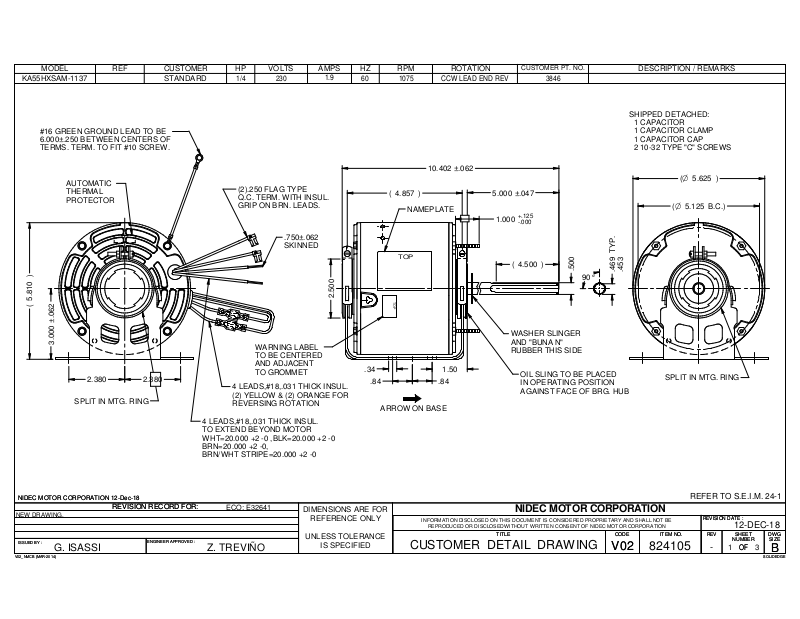

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
824105
REVISION DATE :
REVISION DATE :
REV
REV
-
12-DEC-18
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
