MODEL REF
K55HXTLZ-9493
CUSTOMER
STANDARD
10.180(
O
O
)
9.000(
)
HP
1/2
(4) LEADS, #18 .031THICK INSUL.
(2) YELLOW & (2) ORANGE
FOR REVERSING ROTATION
VOLTS
208-230
AMPS
3.3
HZ
60
RPM
1075/3 SPD
5.312
ROTATION
REVERSIBLE
10.312 ±.062
CAT. NO.
3788
K55 HUBLESS SELF-ALING BRG, OPEN
DESCRIPTION / REMARKS
AUTOMATIC
THERMAL
PROTECTOR
120° TYP. REF.
NOTE:
1.) OUTER BOLT CIRCLE DIA. DIM. IS
FOR MANUFACTURING REFERENCE
ONLY.
2.) (4) LEADS, #18 .031 THICK INSUL.
(2) YELLOW & (2) ORANGE
FOR REVERSING ROTATION.
NIDEC MOTOR CORPORATION 11-Dec-18
NIDEC MOTOR CORPORATION 11-Dec-18
NEW DRAWING.
ISSUED BY :
ISSUED BY :
G. ISASSI
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
2
+
0
0
0
.
3
ECO: E32641
Z. TREVIÑO
0
GROMMET
LEADS
SKINNED
.750±.062
(2).250 STRAIGHT TYPE Q.C. TERMS.
WITH INSUL. GRIP ON BRN LEADS ONLY
6 LEADS,#18,.031 THICK INSUL. TO EXTEND BEYOND MOTOR:
WHT=24.000 +2 -0, BLK=24.000 +2 -0
BLU=24.000 +2 -0, RED=24.000 +2 -0
BRN=24.000 +2 -0, BRN/WHT=24.000 +2 -0
#16 GRN/YEL GROUND LEAD TO BE
12.000±.250 BETWEEN CENTERS
OF TERM. TERM TO FIT #10 SCREW
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
3.000
5.000 ±.047
NAMEPLATE
T
O
P
T
O
P
WARNING LABEL TO BE
ADJACENT
TO REVERSING LEADS.
ROTATION: C.CW. LEAD END REV.
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

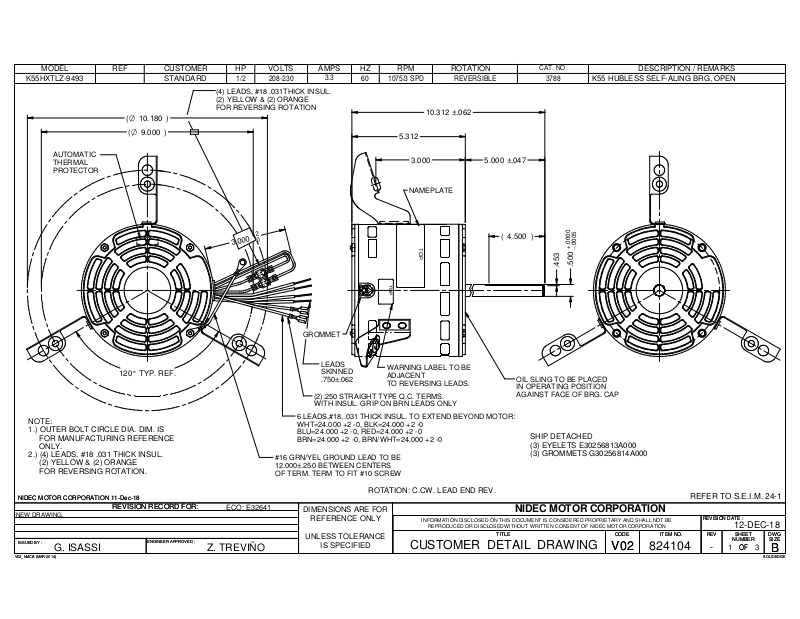

CUSTOMER DETAIL DRAWING
4.500( )
+.0000
-.0005
.500
.453
OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG. CAP
SHIP DETACHED
(3) EYELETS E30256813A000
(3) GROMMETS G30256814A000
NIDEC MOTOR CORPORATION
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
824104
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
12-DEC-18
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
