MODEL
REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN DESCRIPTION / REMARKS
K55HXTLY-9492 STANDARD 1/2
10.180 DIA. REF.
9.000 DIA. REF.
AUTOMATIC
THERMAL
PROTECTOR
115
3.500 "u.500"
60 1075/3 SPD CCW LEAD END REV.
7.4
#16 GRN/YEL GROUND LEAD TO BE 12.000 ±.250
BETWEEN CENTERS OF TERM. TERM TO FIT #10 SCREW.
10.562u.062
5.562
3.000
NAMEPLATE
5.000u.047
4.000u.030
NOTES:
1.) OUTER BOLT CIRCLE DIA. DIM. IS
FOR MANUFACTURING REFERENCE
ONLY.
2.) (4) LEADS #18, .031 THICK INSUL.
(2) YELLOW & (2) ORANGE FOR
REVERSING ROTATION.
120° TYP. REF.
6 LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR
WHT=24.000 +2-0, BLK=24.000 +2-0
BLU=24.000 +2-0, RED=24.000 +2-0
BRN=24.000 +2-0, BRN/WHT=24.000 +2-0
NIDEC MOTOR CORPORATION 24-Jan-19
NIDEC MOTOR CORPORATION 24-Jan-19
NEW DRAWING CREATED.
ISSUED BY :
ISSUED BY :
O. CASTANEDA
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
SEE ASSEMBLY
INSTRUCTION #1.
(2) .250 STRAIGHT
TYPE Q.C. TERMS.
WITH INSUL. GRIP
ON BRN LEADS ONLY.
E32889
M. DE LEON
T
O
P
WARNING LABEL TO BE
ADJACENT TO REVERSING
LEADS.
OIL SLING TO BE PLACED
IN OPERATING POSITION
AGANIST FACE OF BRG. CAP.
LEADS SKINNED
.750 u.062
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
T
O
P
OPEN ENDSHIELDS
(BOTH ENDS)
+.0000
-.0005
.500
.453
PROT.
MAIN 1 MAIN 2
AUX.
)
T
E
C
H
(
G
W
E
N
/
T
N
I
R
H
B
W
ORG
N
W
O
R
B
ROTATION IS COUNTER CLOCKWISE
VIEWING LEAD END WITH ORG TO
ORG & YEL TO YEL. TO REVERSE
ROTATION INTERCHANGE ORG &
YEL LEADS.
W
A
O
R
L
O
L
E
Y
E
MALE
G
N
FEMALE
A
R
O
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

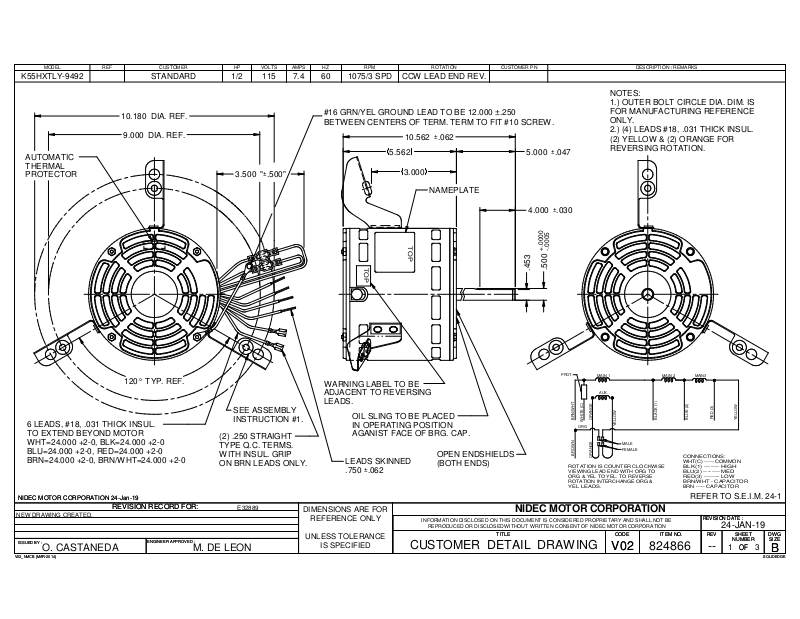

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
)
1
(
K
C
A
L
B
824866
MAIN3
)
)
2
(
E
U
L
B
CONNECTIONS:
WHT(C) ----- COMMON
BLK(1) ------- HIGH
BLU(2) -------- MED
RED(3) -------- LOW
BRN/WHT - CAPACITOR
BRN ----- CAPACITOR
W
3
(
O
L
D
L
E
E
R
Y
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
24-JAN-19
REV
SHEET
REV
SHEET
NUMBER
NUMBER
OF
OF
1 3
--
