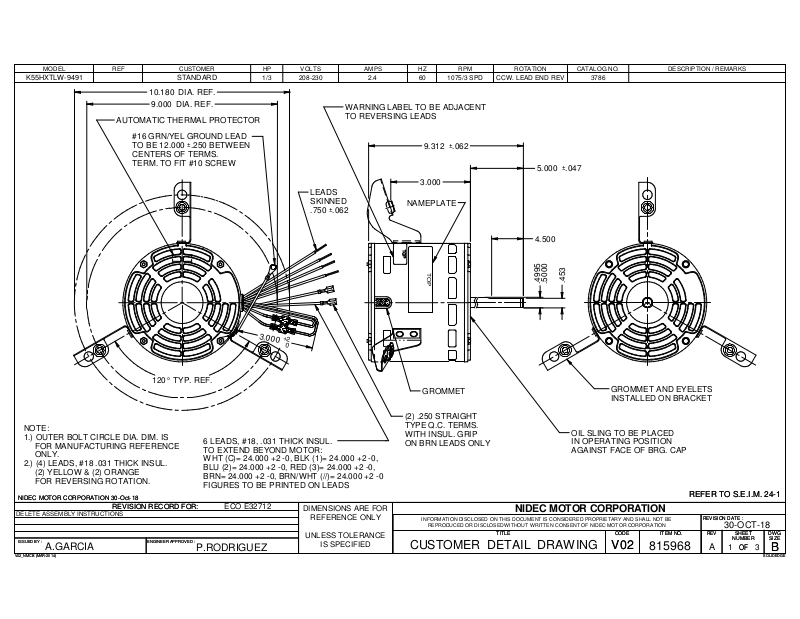

US Motors 3786 Dimensional Sheet
MODEL CATALOG NO.
K55HXTLW-9491
CUSTOMER HZ
STANDARD
HP
1/3 60
VOLTSREF
AMPS DESCRIPTION / REMARKS
2.4
RPM
1075/3 SPD208-230
ROTATION
CCW. LEAD END REV
10.180 DIA. REF.
9.000 DIA. REF.
AUTOMATIC THERMAL PROTECTOR
WARNING LABEL TO BE ADJACENT
TO REVERSING LEADS
#16 GRN/YEL GROUND LEAD
TO BE 12.000 u.250 BETWEEN
9.312u.062
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
5.000u.047
3.000
LEADS
SKINNED
.750 u.062
NAMEPLATE
4.500
T
O
P
3
.
0
+
2
0
0
0
.453
.4995
.5000
3786
120° TYP. REF.
NOTE:
1.) OUTER BOLT CIRCLE DIA. DIM. IS
FOR MANUFACTURING REFERENCE
ONLY.
2.) (4) LEADS, #18 .031 THICK INSUL.
(2) YELLOW & (2) ORANGE
FOR REVERSING ROTATION.
NIDEC MOTOR CORPORATION 30-Oct-18
NIDEC MOTOR CORPORATION 30-Oct-18
DELETE ASSEMBLY INSTRUCTIONS
ISSUED BY :
ISSUED BY :
A.GARCIA
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
6 LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
WHT (C)= 24.000 +2 -0, BLK (1)= 24.000 +2 -0,
BLU (2)= 24.000 +2 -0, RED (3)= 24.000 +2 -0,
BRN= 24.000 +2 -0, BRN/WHT (//)= 24.000 +2 -0
FIGURES TO BE PRINTED ON LEADS
ECO E32712
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
P.RODRIGUEZ
IS SPECIFIED
GROMMET
GROMMET AND EYELETS
INSTALLED ON BRACKET
(2) .250 STRAIGHT
TYPE Q.C. TERMS.
WITH INSUL. GRIP
ON BRN LEADS ONLY
OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG. CAP
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
815968
REFER TO S.E.I.M. 24-1
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
30-OCT-18
REV
REV
A
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
