MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
K55HXTLT-9490
STANDARD
1/3
115
5 60 1075/3 SPD
CCW. LEAD END REV
CAT. NO.
3785
DESCRIPTION / REMARKS
10.180 DIA. REF.
9.000 DIA. REF.
AUTOMATIC
THERMAL
PROTECTOR
120°TYP. REF.
NIDEC MOTOR CORPORATION 12-Jun-17
NIDEC MOTOR CORPORATION 12-Jun-17
NEW DRAWING.
ISSUED BY :
ISSUED BY :
B. ANDRADE
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
0
0
.
3
#16 GRN/YEL GROUND LEAD
TO BE 12.000±.250 BETWEEN
CENTERS OF TERM. TERMINAL
TO FIT #10 SCREW
E28787
H. NAVARRO
2
+
0
0
-
GROMMET
9.562
3.000
NAMEPLATE
T
O
P
LEADS SKINNED
.750±.062
(2) .250 STRAIGHT TYPE Q.C
TERMS. WITH INSUL. GRIP
ON BRN LEADS ONLY
6 LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR
WHT= 24.000+2-0, BLK= 24.000+2-0
BLU= 24.000+2-0, RED= 24.000+2-0
BRN= 24.000+2-0, BRN/WHT= 24.000+2-0
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

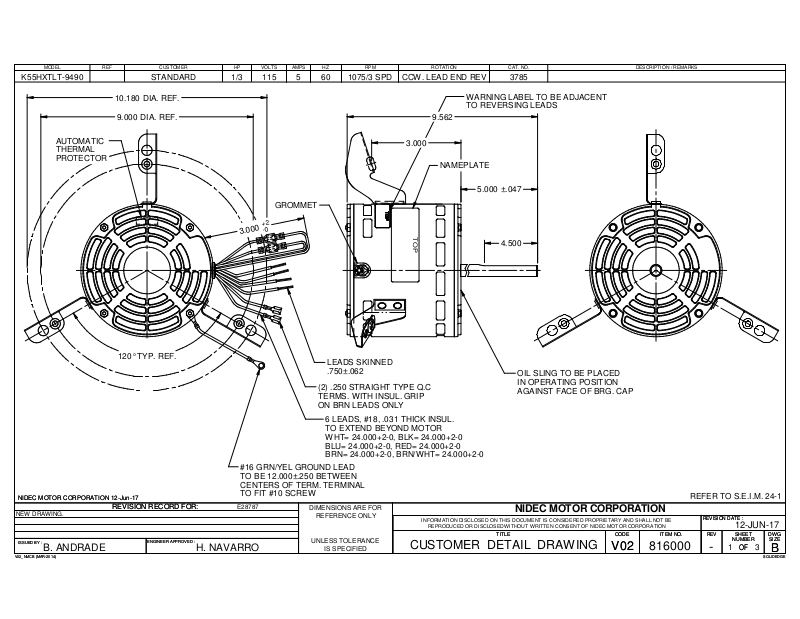

CUSTOMER DETAIL DRAWING
WARNING LABEL TO BE ADJACENT
TO REVERSING LEADS
5.000 ±.047
4.500
OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG. CAP
NIDEC MOTOR CORPORATION
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
816000
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
12-JUN-17
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
