K55HXTLS-9489
CUSTOMER HZ
STANDARD

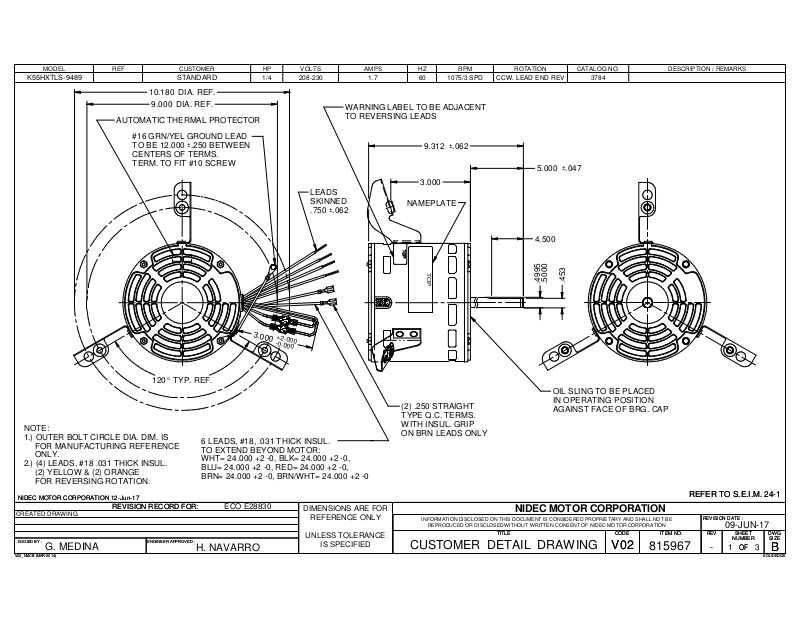

10.180 DIA. REF.
9.000 DIA. REF.
AUTOMATIC THERMAL PROTECTOR
#16 GRN/YEL GROUND LEAD
TO BE 12.000 u.250 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
HPMODEL CATALOG NO.
1/4 601.7
VOLTSREF
AMPS DESCRIPTION / REMARKS
RPM
1075/3 SPD208-230
ROTATION
CCW. LEAD END REV
3784
WARNING LABEL TO BE ADJACENT
TO REVERSING LEADS
9.312u.062
5.000u.047
3.000
LEADS
SKINNED
.750 u.062
NAMEPLATE
4.500
T
O
P
3
.
0
+
2
0
.
0
0
0
0
-
0
.
0
0
0
.453
.4995
.5000
120° TYP. REF.
NOTE:
1.) OUTER BOLT CIRCLE DIA. DIM. IS
FOR MANUFACTURING REFERENCE
ONLY.
2.) (4) LEADS, #18 .031 THICK INSUL.
(2) YELLOW & (2) ORANGE
FOR REVERSING ROTATION.
NIDEC MOTOR CORPORATION 12-Jun-17
NIDEC MOTOR CORPORATION 12-Jun-17
CREATED DRAWING.
ISSUED BY :
ISSUED BY :
G. MEDINA
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
6 LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
WHT= 24.000 +2 -0, BLK= 24.000 +2 -0,
BLU= 24.000 +2 -0, RED= 24.000 +2 -0,
BRN= 24.000 +2 -0, BRN/WHT= 24.000 +2 -0
ECO E28830
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
H. NAVARRO
IS SPECIFIED
OIL SLING TO BE PLACED
(2) .250 STRAIGHT
TYPE Q.C. TERMS.
IN OPERATING POSITION
AGAINST FACE OF BRG. CAP
WITH INSUL. GRIP
ON BRN LEADS ONLY
