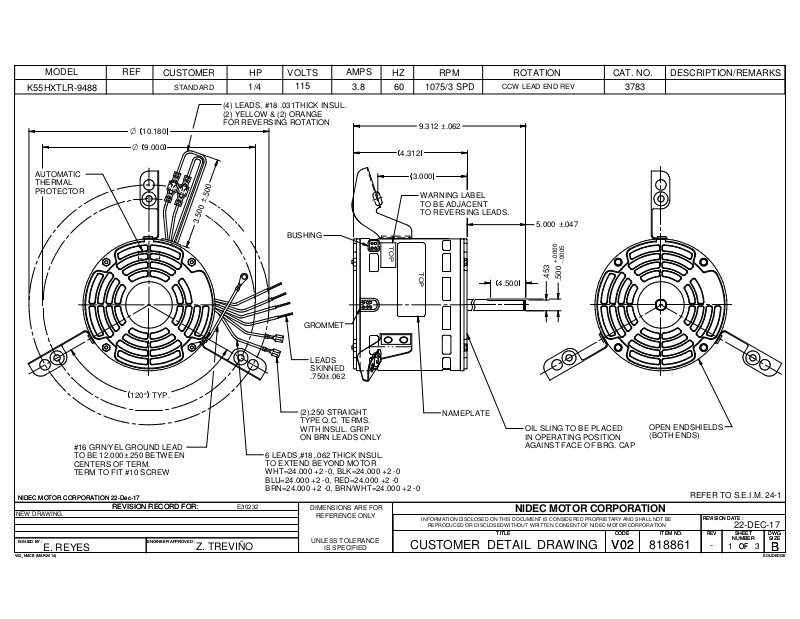

US Motors 3783 Dimensional Sheet

MODEL

K55HXTLR-9488

REF

O

O

CUSTOMER

10.180

9.000

STANDARD

HP
1/4

VOLTS

115

(4) LEADS, #18 .031THICK INSUL.
(2) YELLOW & (2) ORANGE
FOR REVERSING ROTATION

AMPS

3.8

HZ RPM

60

1075/3 SPD

9.312 ±.062

4.312

ROTATION

CCW LEAD END REV

CAT. NO.

3783

DESCRIPTION/REMARKS

AUTOMATIC
THERMAL
PROTECTOR

#16 GRN/YEL GROUND LEAD
TO BE 12.000±.250 BETWEEN
CENTERS OF TERM.
TERM TO FIT #10 SCREW

NIDEC MOTOR CORPORATION 22-Dec-17

NIDEC MOTOR CORPORATION 22-Dec-17

NEW DRAWING.

ISSUED BY :

ISSUED BY :

E. REYES

REVISION RECORD FOR:

REVISION RECORD FOR:

120° TYP.

ENGINEER APPROVED :

ENGINEER APPROVED :

0

0

5

.

±

0

0

5

.

3

E30232

Z. TREVIÑO

BUSHING

T
O

P

GROMMET

LEADS
SKINNED
.750±.062

(2).250 STRAIGHT
TYPE Q.C. TERMS.
WITH INSUL. GRIP
ON BRN LEADS ONLY

6 LEADS,#18,.062 THICK INSUL.
TO EXTEND BEYOND MOTOR
WHT=24.000 +2 -0, BLK=24.000 +2 -0
BLU=24.000 +2 -0, RED=24.000 +2 -0
BRN=24.000 +2 -0, BRN/WHT=24.000 +2 -0

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

CUSTOMER DETAIL DRAWING

3.000

WARNING LABEL
TO BE ADJACENT
TO REVERSING LEADS.

5.000 ±.047

+.0000

T
O

P

4.500

-.0005

.453

.500

NAMEPLATE

OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG. CAP

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

OPEN ENDSHIELDS
(BOTH ENDS)

REFER TO S.E.I.M. 24-1

REVISION DATE :

REVISION DATE :

REV

REV

818861

-

22-DEC-17

SHEET

SHEET

NUMBER

NUMBER

OF

OF

1 3

DWG

DWG

SIZE

SIZE

B

B

SOLIDEDGEV02_NMCB (MA R-2014)
