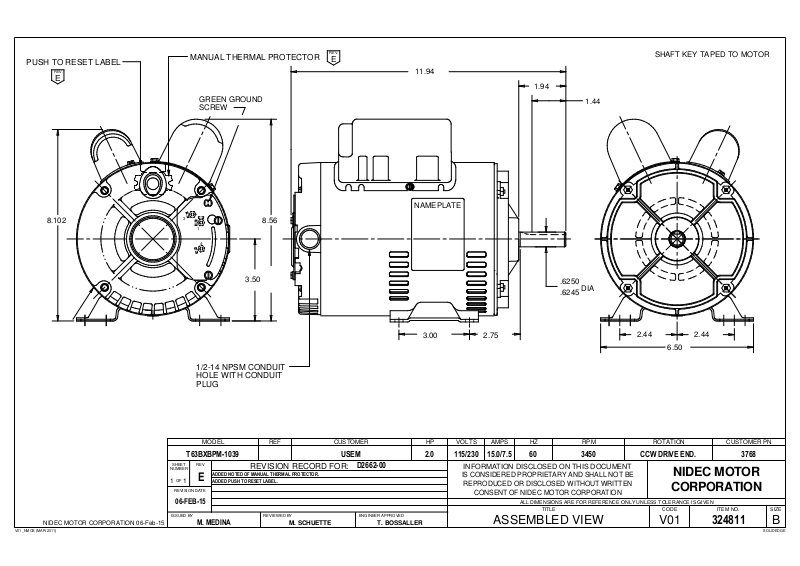

US Motors 3768 Dimensional Sheet

PUSH TO RESET LABEL

E

REV.

8.102

MANUAL THERMAL PROTECTOR

GREEN GROUND
SCREW

3

1

4

8.56

REV.

E

SHAFT KEY TAPED TO MOTOR

11.94

1.94

1.44

NAMEPLATE

NIDEC MOTOR CORPORATION 06-Feb-15

1/2-14 NPSM CONDUIT
HOLE WITH CONDUIT
PLUG

MODEL REF

T63BXBPM-1039

SHEET

REV

NUMBER

OF

1

1

REVISION DATE

ADDED NOTED OF MANUAL THERMAL PROTECTOR.

E

ADDED PUSH TO RESET LABEL.

06-FEB-15

ISSUED BY

M. MEDINA

3.50

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

USEM

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

M. SCHUETTE T. BOSSALLER

D2662-00

3.00 2.75

2.0 115/230 15.0/7.5

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ASSEMBLED VIEW

.6250

DIA

.6245

2.44 2.44

6.50

60 3450

CCW DRIVE END. 3768

NIDEC MOTOR

CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

V01

CUSTOMER PN

324811

B

SOLIDEDGEV01_NMCB (MAR-2011)
