Page 1
MODEL
K55HXTDR-8455
REF
A101059
TERMINAL TO FIT #10 STUD
#16 GRN/YEL GROUND LEAD TO BE
6.000u.250 BETWEEN CENTERS
OF TERMINALS
CUSTOMER
STANDARD
HP
3/4
VOLTS
AMPS
2.0
HZ
60
RPM
1075
CW. LEAD END REV460
ROTATION
12.857 ±.062
WARNING LABEL TO BE ADJACENT
TO REVERSING LEADS
CAT. NO.
3742
K55 BALL BRG. ENCLOSED
DESCRIPTION / REMARKS
FIRST POLE OF MAIN 1 (FIRST HALF)
TO BE SEPARATED FROM LAST POLE OF
MAIN 1 (SECOND HALF) BY A MINIMUM
OF .094 ON BOTH ENDS OF STATOR
5.625
AUTOMATIC
THERMAL
PROTECTOR
DRAIN HOLES
WITH PLUG
(BOTH ENDS)
SEE ASM. INST. #3
(4) LEADS #18 GA., .031 THICK INSUL
TO EXTEND BEYOND MOTOR:
WHT=36.000u1.5; BLK=36.000u1.5;
BRN=36.000u1.5;, BRN/WHT=36.000u1.5
NIDEC MOTOR CORPORATION 29-Mar-19
NIDEC MOTOR CORPORATION 29-Mar-19
GROMMET VIEW UPDATED.
ISSUED BY :
ISSUED BY :
E. REYES
REVISION RECORD FOR:
REVISION RECORD FOR:
8-32 TYP.
GROMMET SEE
ASM. INST. #1
4
.
0
0
0
+
2
-
0
(4) .250 STRAIGH TERMINALS
TYPE Q.C. WITH INSULATION
GRIP
E34133
ENGINEER APPROVED :
ENGINEER APPROVED :
V. VIDALES
NAMEPLATE
TOP
REV.
B
.625 ±.062
4 EXTRA SERRATED
NUTS
REVERSING LEADS
(2) YEL & (2) ORG
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
6.000 ±.0476.312
.545
.062 REF.
2 FLATS
90v APART
+.0000
5.000 ±.030
T
O
P
WATER SLINGER
-.0005
.500
.453
.438
SPRING WASHER
(THIS END)
ENCLOSED ENDSHIELD
(BOTH ENDS)
DRAING PLUG
INSTRUCTION LABEL
COIL END SLEEVING
AT THESE 4 LOCATIONS
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

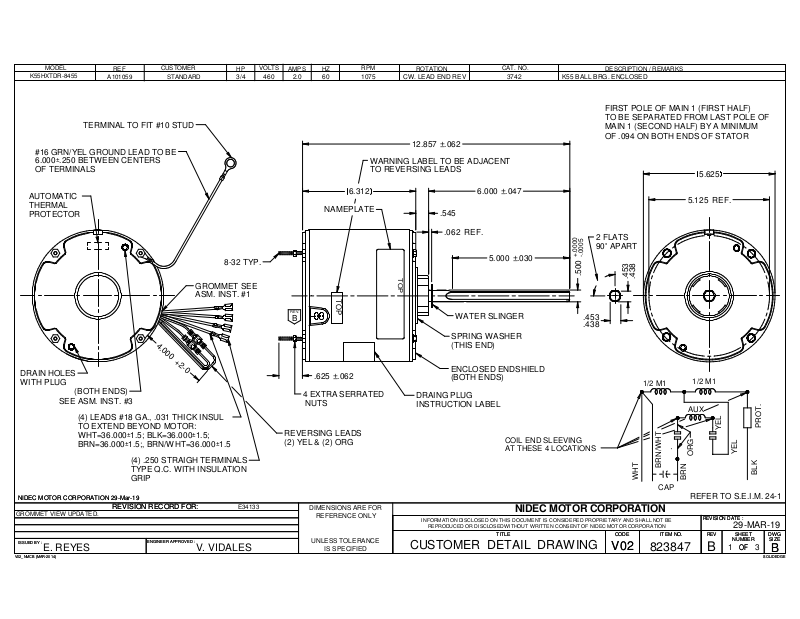

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
.453
.438
WHT
1/2 M1
BRN/WHT
CAP
823847
5.125 REF.
1/2 M1
AUX
YEL
ORG
BRN
PROT.
YEL
BLK
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
B
29-MAR-19
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
DWG
DWG
SIZE
SIZE
B
B
