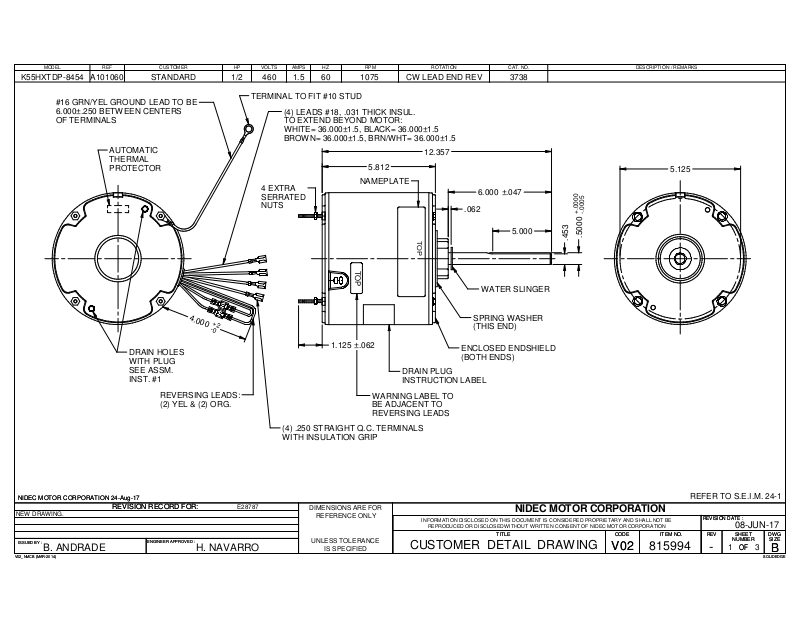

US Motors 3738 Dimensional Sheet
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
K55HXTDP-8454
A101060
STANDARD
1/2
460
1.5 60 1075
CW LEAD END REV
CAT. NO.
3738
DESCRIPTION / REMARKS
#16 GRN/YEL GROUND LEAD TO BE
6.000±.250 BETWEEN CENTERS
OF TERMINALS
AUTOMATIC
THERMAL
PROTECTOR
4
DRAIN HOLES
WITH PLUG
SEE ASSM.
INST. #1
REVERSING LEADS:
(2) YEL & (2) ORG.
TERMINAL TO FIT #10 STUD
(4) LEADS #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
WHITE= 36.000±1.5, BLACK= 36.000±1.5
BROWN= 36.000±1.5, BRN/WHT= 36.000±1.5
12.357
4 EXTRA
SERRATED
NUTS
5.812
NAMEPLATE
6.000 ±.047
.062
T
O
P
5.000
+.0000
-.0005
.5000
.453
5.125
TOP
WATER SLINGER
.
0
0
+
0
2
-
0
1.125 ±.062
SPRING WASHER
(THIS END)
ENCLOSED ENDSHIELD
(BOTH ENDS)
DRAIN PLUG
INSTRUCTION LABEL
WARNING LABEL TO
BE ADJACENT TO
REVERSING LEADS
(4) .250 STRAIGHT Q.C. TERMINALS
WITH INSULATION GRIP
NIDEC MOTOR CORPORATION 24-Aug-17
NIDEC MOTOR CORPORATION 24-Aug-17
NEW DRAWING.
ISSUED BY :
ISSUED BY :
B. ANDRADE
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
E28787
H. NAVARRO
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
815994
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
08-JUN-17
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
