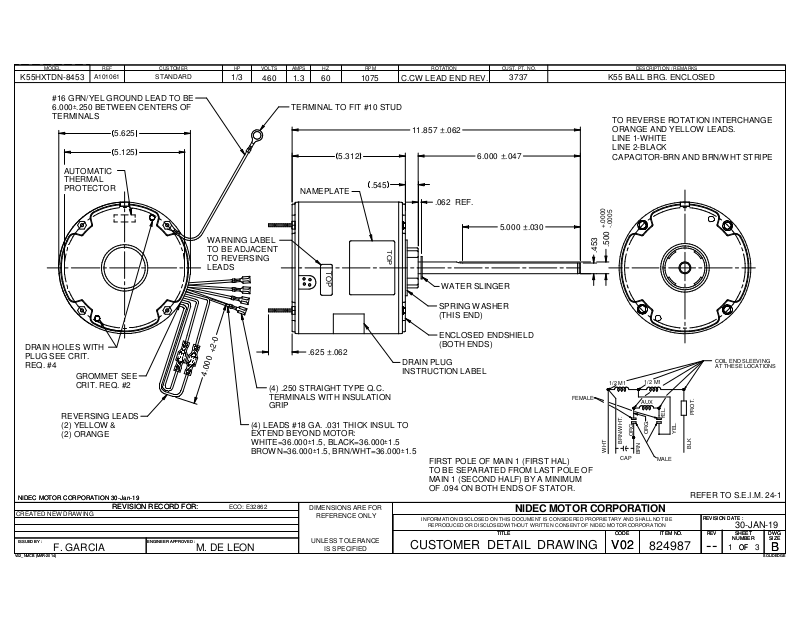

US Motors 3737 Dimensional Sheet
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUST. PT. NO.
K55HXTDN-8453
A101061
STANDARD
1/3
460 1.3
60
1075
C.CW LEAD END REV.
#16 GRN/YEL GROUND LEAD TO BE
6.000u.250 BETWEEN CENTERS OF
TERMINAL TO FIT #10 STUD
TERMINALS
5.625
5.125
11.857 ±.062
6.000 ±.0475.312
AUTOMATIC
THERMAL
PROTECTOR
NAMEPLATE
.545
.062 REF.
WARNING LABEL
TO BE ADJACENT
TO REVERSING
LEADS
TOP
T
O
P
WATER SLINGER
SPRING WASHER
(THIS END)
3737
5.000 ±.030
DESCRIPTION / REMARKS
K55 BALL BRG. ENCLOSED
TO REVERSE ROTATION INTERCHANGE
ORANGE AND YELLOW LEADS.
LINE 1-WHITE
LINE 2-BLACK
CAPACITOR-BRN AND BRN/WHT STRIPE
+.0000
-.0005
.500
.453
DRAIN HOLES WITH
PLUG SEE CRIT.
REQ. #4
GROMMET SEE
CRIT. REQ. #2
REVERSING LEADS
(2) YELLOW &
(2) ORANGE
NIDEC MOTOR CORPORATION 30-Jan-19
NIDEC MOTOR CORPORATION 30-Jan-19
CREATED NEW DRAWING
ISSUED BY :
ISSUED BY :
F. GARCIA
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
0
-
2
+
0
0
0
.
4
ECO: E32862
M. DE LEON
.625 ±.062
DRAIN PLUG
INSTRUCTION LABEL
(4) .250 STRAIGHT TYPE Q.C.
TERMINALS WITH INSULATION
GRIP
(4) LEADS #18 GA. .031 THICK INSUL TO
EXTEND BEYOND MOTOR:
WHITE=36.000u1.5, BLACK=36.000u1.5
BROWN=36.000u1.5, BRN/WHT=36.000u1.5
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
ENCLOSED ENDSHIELD
(BOTH ENDS)
1/2 M1
FEMALE
ORG
BRN/WHT.
WHT
FIRST POLE OF MAIN 1 (FIRST HAL)
CAP
BRN
TO BE SEPARATED FROM LAST POLE OF
MAIN 1 (SECOND HALF) BY A MINIMUM
OF .094 ON BOTH ENDS OF STATOR.
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
1/2 M1
AUX
YEL.
ORG.
MALE
824987
COIL END SLEEVING
AT THESE LOCATIONS
PROT.
YEL.
BLK
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
--
30-JAN-19
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
