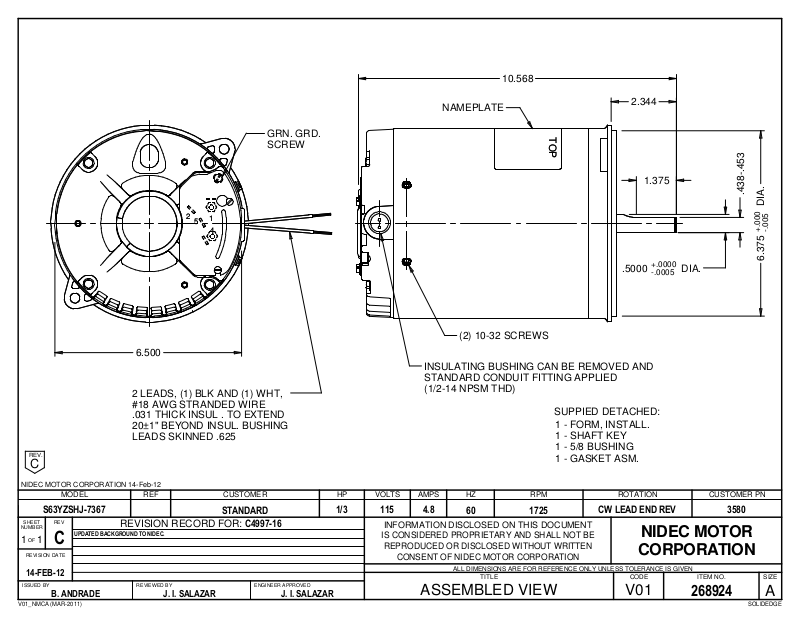

US Motors 3580 Dimensional Sheet
10.568
REV.
C
GRN. GRD.
SCREW
2
2
1
1
5
5
4
4
6.500
2 LEADS, (1) BLK AND (1) WHT,
#18 AWG STRANDED WIRE
.031 THICK INSUL . TO EXTEND
20±1" BEYOND INSUL. BUSHING
LEADS SKINNED .625
NAMEPLATE
TOP
TOP
2.344
1.375
.5000
(2) 10-32 SCREWS
INSULATING BUSHING CAN BE REMOVED AND
STANDARD CONDUIT FITTING APPLIED
(1/2-14 NPSM THD)
SUPPIED DETACHED:
1 - FORM, INSTALL.
1 - SHAFT KEY
1 - 5/8 BUSHING
1 - GASKET ASM.
+.0000
-.0005
DIA.
.438-.453
DIA.
+.000
-.005
6.375
NIDEC MOTOR CORPORATION 14-Feb-12
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
S63YZSHJ-7367
SHEET
NUMBER
1 1
REV
OF
C
REVISION DATE
UPDATED BACKGROUND TO NIDEC.
REVISION RECORD FOR:
14-FEB-12
ISSUED BY
REVIEWED BY ENGINEER APPROVED
B. ANDRADE
J. I. SALAZAR
STANDARD
C4997-16
J. I. SALAZAR
1/3 115 4.8
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ASSEMBLED VIEW
60 1725
CW LEAD END REV 3580
NIDEC MOTOR
CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
V01
268924
A
SOLIDEDGEV01_NMCA (MAR-2011)
