US Motors 3405 Dimensional Sheet

REF.MODEL

C37126-2

CUSTOMER

WHOLESALE HACK55HXPUF-1679 .85

HP

AMPSVOLTS

RPMHZ

60208-2301/6 3405

1500

ROTATION

CW LEAD END

DESCRIPTION / REMARKSCATALOG NO.

6.207 u.062

3.625

5.625

SPRING WASHER THIS END

AUTOMATIC
THERMAL
PROTECTOR

DRAIN PLUG
INSTRUCTION
LABEL

1.600 u.047

5.125 DIA. B.C.

.125

8-32 UNC
THREAD

TOP

TOP

1.350

.4995

.5000

.438

.453

3.625

WATER SLINGER

(2) BLACK
DRAIN
PLUGS

NIDEC MOTOR CORPORATION 18-May-17

CREATED DRAWING.

ISSUED BY :

G. MEDINA

REVISION RECORD FOR:

ENGINEER APPROVED :

.320

(3) .250 STRAIGHT TYPE
Q.C. TERMS. WITH INSUL.
GRIP

(3) LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
YELLOW= 38.000 +2-1, BROWN= 38.000 +2-1,
BLACK= 38.000 +2-1

ECO E28698

H. NAVARRO

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

NAMEPLATE

YEL

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

TITLE

TITLE

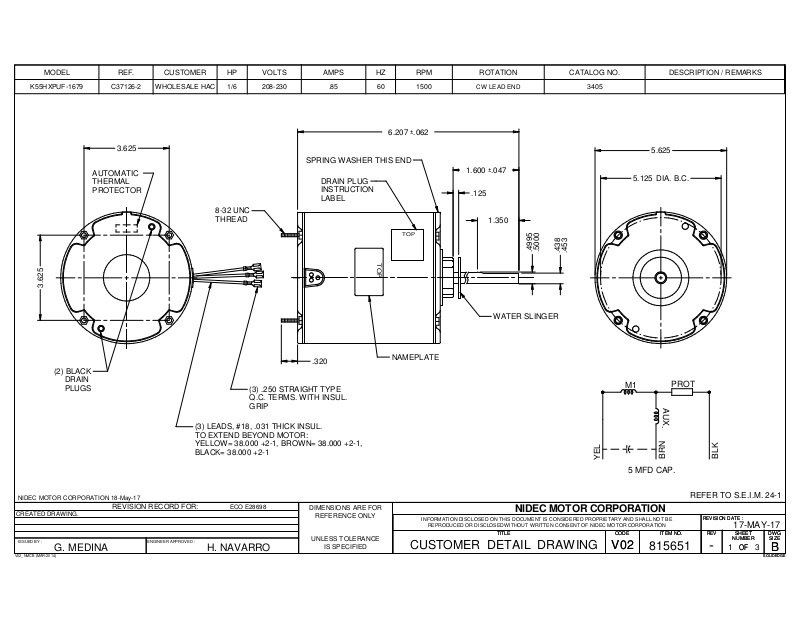

CUSTOMER DETAIL DRAWING

M1

A
U
X
.

BRN

5 MFD CAP.

CODE ITEM NO.

CODE ITEM NO.

V02

V02

815651

PROT

BLK

REFER TO S.E.I.M. 24-1

REVISION DATE :

REVISION DATE :

REV

REV

-

17-MAY-17

SHEET

SHEET

NUMBER

NUMBER

1 3

OF

OF

DWG

DWG

SIZE

SIZE

B

B

SOLIDEDGEV02_NMCB (MAR-2014)

SOLIDEDGE
