Page 1
MODEL REF CUSTOMER
K55HXSWK-7927
STANDARD
HP VOLTS AMPS HZ RPM ROTATION CAT. NO.
1/4
208-230
1.8
60
1100
CCW SHAFT END
REV.
A
3404
DESCRIPTION / REMARKS
AUTOMATIC THERMAL
PROTECTOR
8-32 UNC THREAD
6.210 ±.062
DRAIN PLUG
INSTRUCTION
LABEL
TOP
TOP
1.600 ±.047
.125
1.350
5.625
5.125
.438
.453
.4995
.5000
3.625
WATER SLINGER
"BUNA N" RUBBER
THIS SIDE
BLACK DRAIN PLUG
SEE ASSEM. INST. #2
3.625
BLACK DRAIN
PLUG SEE ASSEM.
+.125
.320
-.000
(3) .250 STRAIGHT TYPE Q.C.
TERMS. WITH ISUL. GRIP
NAMEPLATE
INST. #2
3 LEADS #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
YELLOW= 45.000+2-1, BROWN= 45.000+2-1
BLACK= 48.000+2-1
M1
PROT
AUX.
NIDEC MOTOR CORPORATION 18-Nov-17
NIDEC MOTOR CORPORATION 18-Nov-17
ROTATION WAS CHANGED.
ISSUED BY :
ISSUED BY :
B. ANDRADE
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
E30109
A. LOZANO
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
TOTALLY ENCLOSED
YEL
5 MFD CAP.
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

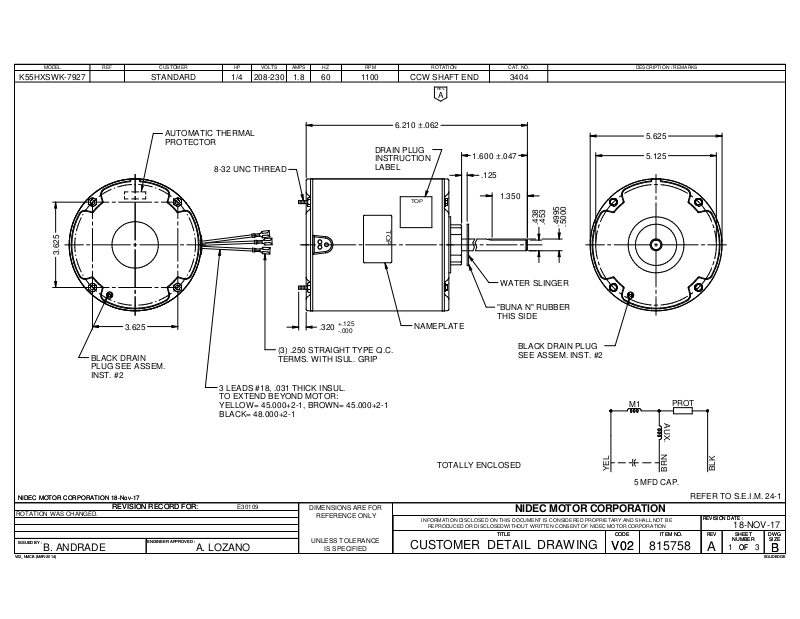

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
BRN
815758
BLK
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
A
18-NOV-17
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
