Page 1
B OF
B OF
MODEL REF CUSTOMER
K55HXSWG-7925
STANDARD
AUTOMATIC THERMAL
PROTECTOR
8-32 UNC THREAD
HP VOLTS AMPS HZ RPM ROTATION CAT. NO.
1/10
208-230
0.80-0.80
60
1100
CW LEAD END
REV.
3402
A
5.71 ±.062
DRAIN PLUG
INSTRUCTION
LABEL
1.600 ±.047
.125
DESCRIPTION / REMARKS
5.625
5.125 B.C.
TOP
TOP
1.350
.438
.453
.4995
.5000
3.625
WATER SLINGER
"BUNA N" RUBBER
THIS SIDE
3.625
BLACK DRAIN
+.125
.320
-.000
(3) .250 STRAIGHT TYPE Q.C.
TERMS. WITH ISUL. GRIP
NAMEPLATE
BLACK DRAIN PLUG
SEE ASSEM. INST. #2
PLUG SEE ASSEM.
INST. #2
3 LEADS #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
YELLOW= 45.000+2-1, BROWN= 45.000+2-1
BLACK= 45.000+2-1
M1
PROT
AUX.
TOTALLY ENCLOSED
YEL
BRN
BLK
5 MFD CAP.
NIDEC MOTOR CORPORATION 10-Oct-17
NIDEC MOTOR CORPORATION 10-Oct-17
REVISION RECORD FOR:
CHANGED THE ROTATION FROM CCW TO CW LEAD END IN THE CHART, PAGES 1 & 2.
ISSUED BY :
ISSUED BY :
G. MEDINA
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
H. NAVARRO
ECO E29862
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITT EN CONSENT OF NIDEC MOTOR CORPORATION

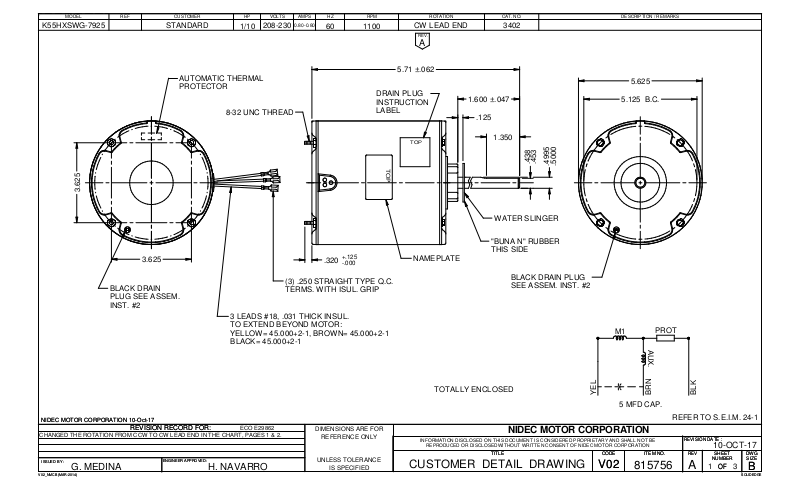

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
815756
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
10-OCT-17
REV
REV
A
SHEET
SHEET
NUMBER
NUMBER
1 3
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
DWG
DWG
SIZE
SIZE
