Page 1
REF.MODEL
CUSTOMER
WHOLESALE HACK55HXSWF-7924 .67
HP
AMPSVOLTS
60208-2301/12
RPMHZ
1100
ROTATION
CW LEAD END
DESCRIPTION / REMARKSCATALOG NO.
AUTOMATIC
THERMAL
PROTECTOR
3.625
BLACK DRAIN
PLUG
SEE ASSEMBLY
INSTRUCTION #2
3.625
8-32 UNC
THREAD
.320 ±.062
REV.
A
(3) .250 STRAIGHT TYPE
Q.C. TERMS. WITH INSUL.
GRIP
(3) LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
YELLOW= 45.000 +2-1, BROWN= 45.000 +2-1,
BLACK= 45.000 +2-1
5.71 u.062
TOP
TOP
NAMEPLATE
TOTALLY ENCLOSED
1.600 u.047
.125
1.350
WATER SLINGER
"BUNA N" RUBBER
THIS SIDE
BLACK DRAIN PLUG
SEE ASSEMBLY
INSTRUCTION #2
5.125 DIA. B.C.
M1
YEL
5 MFD CAP.
5.625
A
U
X
.
BRN
PROT
BLK
NIDEC MOTOR CORPORATION 23-Oct-17
ADDED STUD LENGTH AND TOLERANCE ON PAGES 1 & 2.
ISSUED BY :
G. MEDINA
REVISION RECORD FOR:
ENGINEER APPROVED :
ECO E29947
H. NAVARRO
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

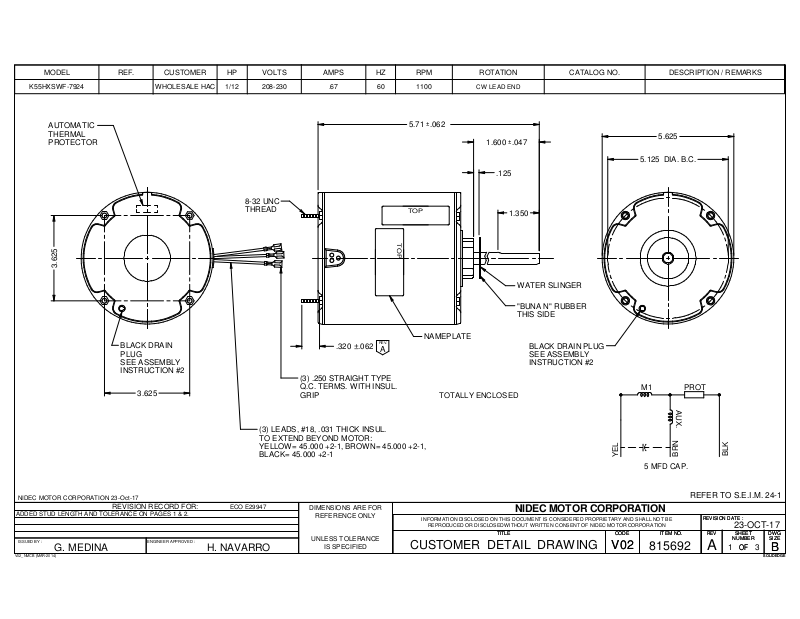

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
815692
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
A
23-OCT-17
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGE
