V02 DAYTON HAC pg 1 English
B OF
B OF
MODEL REF CUSTOMER
K55HXLYZ-2702
4 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
BLACK=36.000+2-0;
WHITE=36.000+2-0
BROWN=36.000+2-0;
BRN/WHT STRIPE=36.000+2-0
GROMMET
AUTOMATIC
THERMAL
PROTECTOR
WHOLESALE HAC 1/2-1/5
HP VOLTS
LEADS SKINNED
.750±.062
4.00+2-0
208-230
AMPS HZ RPM
2.6-1.7
60
(4) LEADS,#18 .031 THICK INSUL.
(2) YELLOW & (2) ORANGE
FOR REVERSING ROTATION
#16 GRN/YEL GROUND LEAD
TO BE 12.000±.250 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
.718 ±.031
TOP
1075
10.812 ±.062
NAMEPLATE
TOP
ROTATION
REVERSIBLE
CUSTOMER PN DESCRIPTION / REMARKS
3325
K55 ENCLOSED, STUD MTD, BALL BRG
5.000u.047
5.625
5.125 DIA, B.C.
8-32 UNC THRD
SEAM WELD
(2) BLACK DRAIN PLUGS
SEE CRIT. REQ. #2
(2) .250 FLAG TYPE INSUL. Q.C. TERMS.
ON BROWN & BRN/WHT LEADS.
(4) 8-18 SCREWS SUPPLIED IN (4) .120 - .124
SHELL HOLES. SCREWS TO BE STARTED
AND RUN IN BUT NOT TIGHT
ROTATION IS C.CW VIEWING LEAD END WITH
ORG. TO ORG. & YEL. TO YEL. TO REVERSE
ROTATION INTERCHANGE ORG. & YEL. LEADS
NIDEC MOTOR CORPORATION 08-Feb-17
NIDEC MOTOR CORPORATION 08-Feb-17
REMOVE ASSEMBLY INSTRUCTION #5 AND RENUMBER ASSEMBLY INSTRUCTIONS IN PAGE #3
ISSUED BY :
ISSUED BY :
O. CASTAÑEDA
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
A. VILLANUEVA
E27933
.500 ±.062
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
.125
4.000
WATER SLINGER
TOP
DRAIN PLUG
INSTRUCTION LABEL
WARNING LABEL TO BE
"BUNA N" RUBBER
THIS SIDE
SPRING WASHER
(2) DRAIN HOLES
AUX.
MAIN
YELLOW
ORANGE
ADJACENT TO LEAD HOLE
E
T
PROT.
I
H
W
YELLOW
BLACK
L1 TO BLK
L2 TO WHT
TO
CAPACITOR
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

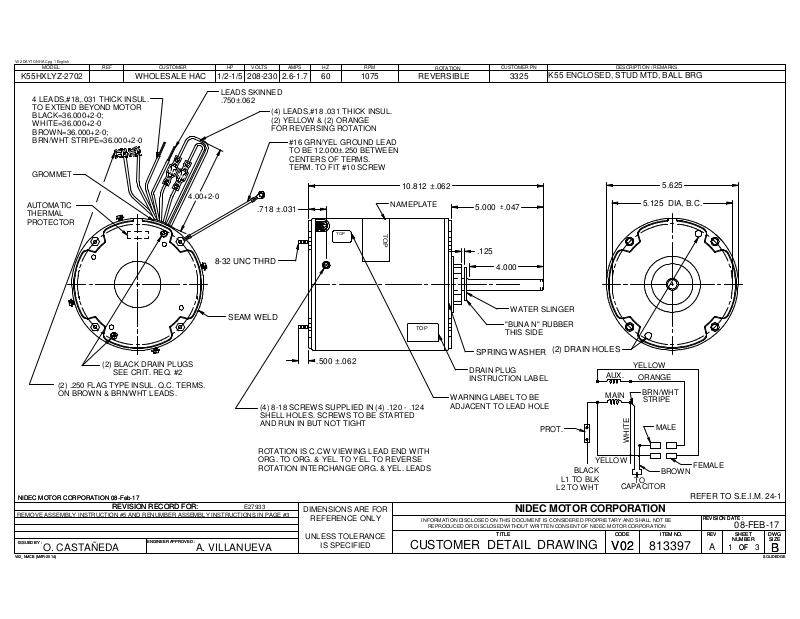

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
BRN/WHT
STRIPE
MALE
BROWN
813397
FEMALE
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
A
08-FEB-17
SHEET
SHEET
NUMBER
NUMBER
1 3
DWG
DWG
SIZE
SIZE
SOLIDEDGEV02_NMCB (MAR- 2014)
SOLIDEDGEV02_NMCB (MAR- 2014)
