MODEL REF
K55HXDYM-1324
4 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
BLACK=36.000+2-0;
WHITE=36.000+2-0
BROWN=36.000+2-0;
BRN/WHT STRIPE=36.000+2-0
GROMMET
AUTOMATIC
THERMAL
PROTECTOR
WHOLESALE HAC
LEADS SKINNED
.750±.062
4.00+2-0
HP ROTATION
1/2 - 1/5
VOLTS
AMPS
HZ
208-230 2.6-1.7 60
RPM
1075
REVERSIBLE
(4) LEADS,#18 .031 THICK INSUL.
(2) YELLOW & (2) ORANGE
FOR REVERSING ROTATION
#16 GRN/YEL GROUND LEAD
TO BE 12.000±.250 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
10.812u.062
NAMEPLATE
.718±.031
5.000u.047
CUSTOMER PT. NO.
3324
K55, ENCLOSED, STUD. MTD, SELF-ALIGN BRG
DESCRIPTION / REMARKSCUSTOMER
5.625
5.125 DIA. B.C.
(2) BLACK DRAIN PLUGS
SEE ASSEMBLY INSTR. #2
(2) .250 FLAG TYPE INSUL. Q.C. TERMS.
ON BROWN & BRN/WHT LEADS.
NIDEC MOTOR CORPORATION 14-Nov-16
NIDEC MOTOR CORPORATION 14-Nov-16
NEW DRAWING CREATED
ISSUED BY :
ISSUED BY :
A. QUINTANILLA
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
8-32 UNC
THREAD
SEAM WELD
(4) 8-18 SCREWS SUPPLIED IN (4) .120 - .124
SHELL HOLES. SCREWS TO BE STARTED
AND RUN IN BUT NOT TIGHT
JC 71282
A. VILLANUEVA
TOP
TOP
TOP
.500 ±.062
WARNING LABEL TO BE
ADJACENT TO LEAD HOLE
ROTATION IS C.CW VIEWING LEAD END WITH
ORG. TO ORG. & YEL. TO YEL. TO REVERSE
ROTATION INTERCHANGE ORG. & YEL. LEADS
DIMENSIONS ARE FOR
REFERENCE ONLY
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
UNLESS TOLERANCE
IS SPECIFIED

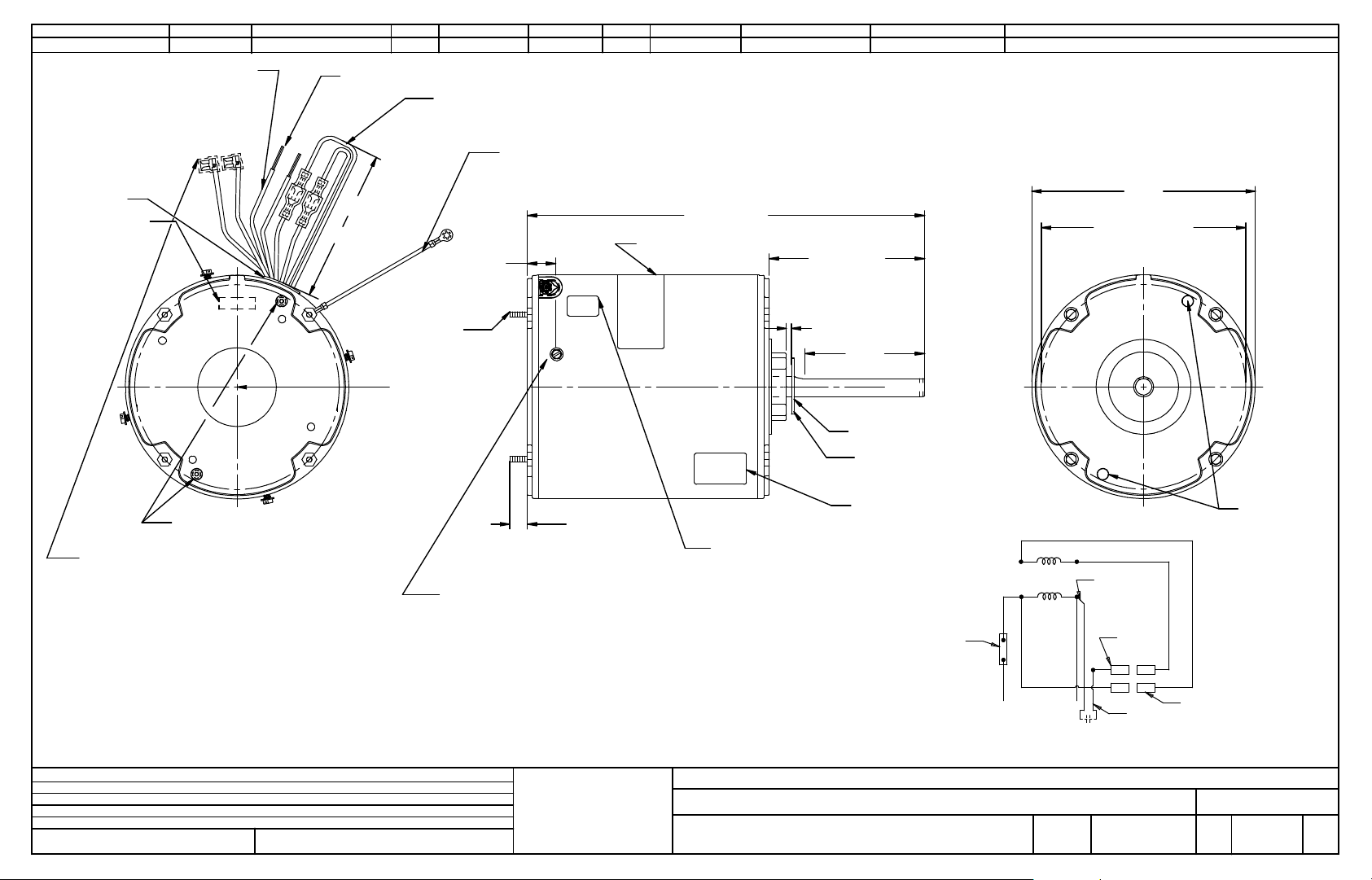

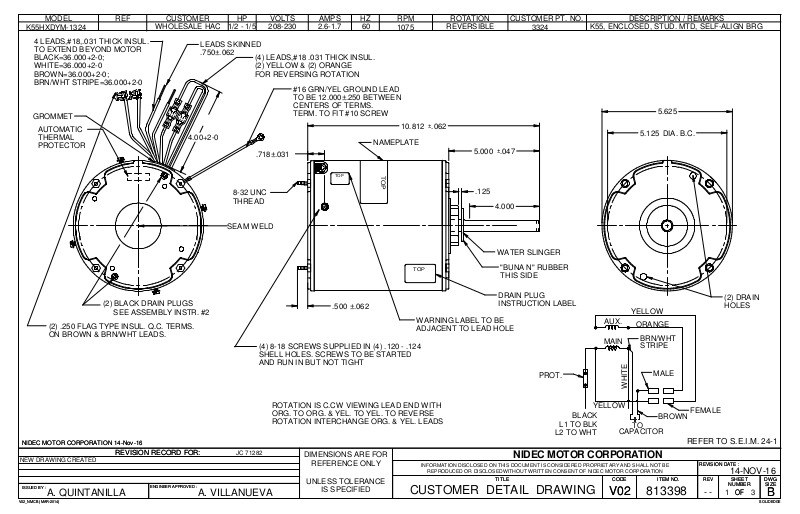

CUSTOMER DETAIL DRAWING
.125
4.000
WATER SLINGER
"BUNA N" RUBBER
THIS SIDE
DRAIN PLUG
INSTRUCTION LABEL
NIDEC MOTOR CORPORATION
TITLE
TITLE
PROT.
L2 TO WHT
BLACK
L1 TO BLK
YELLOW
AUX.
MAIN
E
T
I
H
W
YELLOW
TO
CAPACITOR
CODE ITEM NO.
CODE ITEM NO.
V02
V02
ORANGE
BRN/WHT
STRIPE
MALE
BROWN
813398
(2) DRAIN
HOLES
FEMALE
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
- -
14-NOV-16
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
DWG
DWG
SIZE
SIZE
B
B
