Page 1
MODEL REF
K55HXPND-2848
AUTOMATIC
THERMAL
PROTECTOR
5.125 DIA. B.C.
E
R
°
0
1
CUSTOMER
WHOLESALE HAC
5.625
.
F
HP
1/2 - 1/6 7.3-2.8
VOLTS
115
AMPS
HZ
60 1075
(7).250 FLAG INSUL. TYPE Q.C.
TERMS. WITH INSUL. GRIP
CENTERLINE OF
STATOR HOLE
1
0
°
±
5
°
5.900
5.312
RPM
4.187
ROTATION
CCW LEAD END REV
10.312
NAMEPLATE
1.125
T
O
P
5.000
CUSTOMER PT. NO.
3314
+.0000
-.0005
DESCRIPTION / REMARKS
K55, HUB, SAB BRG
"SHIPPED DETACHED KIT ASSEMBLY"
3
5
°
5
5
°
9
R
SEAM WELD
#16 GRN/YEL GROUND
LEAD TO BE 12.000u.250
BETWEEN CENTERS
OF TERMS. TERM TO
FIT #10 SCREW
NIDEC MOTOR CORPORATION 18-Feb-17
NIDEC MOTOR CORPORATION 18-Feb-17
NEW DRAWING CREATED
ISSUED BY :
ISSUED BY :
F. GARCIA
REVISION RECORD FOR:
REVISION RECORD FOR:
0
°
E
F
.
ENGINEER APPROVED :
ENGINEER APPROVED :
4
.
0
0
0
+
2
-
0
4 LEADS,#18,.031
THICK INSUL FOR
REVERSING ROTATION
(2) YEL=4.000+2-0
(2) ORG=4.000+2-0
7 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
PUR=36.000+2-0, BLK=36.000+2-0,
BLU=36.000+2-0, WHT=36.000+2-0,
RED=36.000+2-0, BRN=36.000+2-0,
BRN/WHT=36.000+2-0.
JC: 71503
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
J. RICE
IS SPECIFIED
T
O
P
REVERSING LEADS
WARNING LABEL
(8) HOLES
.120-.124 DIA.
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

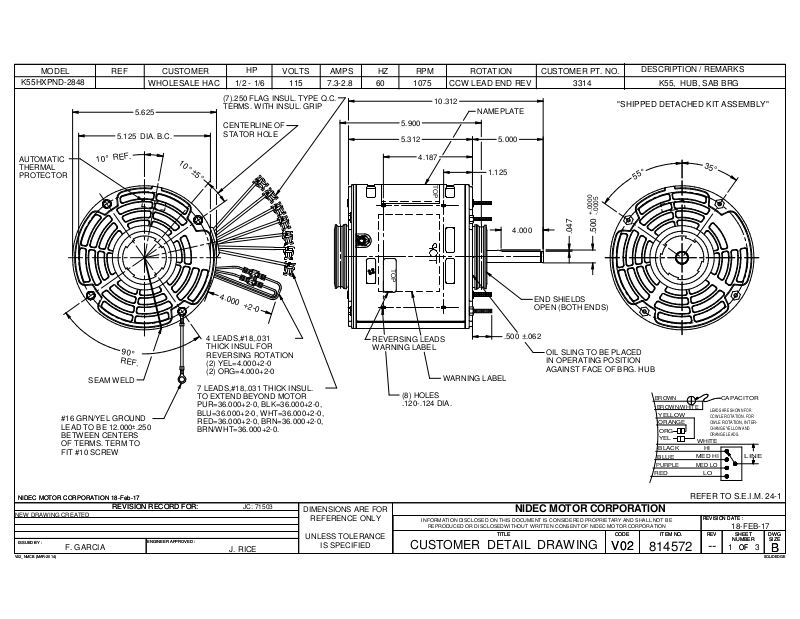

CUSTOMER DETAIL DRAWING
WARNING LABEL
TITLE
TITLE
4.000
.500
.047
END SHIELDS
OPEN (BOTH ENDS)
.500 ±.062
OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG. HUB
NIDEC MOTOR CORPORATION
CODE ITEM NO.
CODE ITEM NO.
V02
V02
BROWN
BROWN/WHITE
YELLOW
ORANGE
ORG
YEL
BLACK
BLUE
PURPLE
RED
814572
CAPACITOR
LEADS ARE S HOWN FOR
CCWLE ROTATION. FOR
CWLE ROTATION, INTERCHANGE YELL OW AND
ORANGE LEAD S.
WHITE
HI
MED HI
MED LO
LO
LINE
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
18-FEB-17
REV
REV
--
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
