MODEL
K55HXPNG-2851
REF
CUSTOMER HZVOLTS
WHOLESALE HAC
HP
3/4 - 1/5
208 - 230
AMPS
3.8
60
RPM
1075
ROTATION
CCW LEAD END REV
CUSTOMER PT. NO.
3313
DESCRIPTION / REMARKS
K55, HUB, BALL BRG, OPEN
7 LEADS #18, .031 THICK INSUL.TO EXTEND BEYOND MOTOR:
WHT=36.000+2-0 , BLK=36.000+2-0 , BLUE=36.000+2-0 ,
PUR=36.000+2-0 , RED=36.000+2-0 , BRN=36.000+2-0 ,
BRN/WHT=36.000+2-0.
5.625
5.125 DIA. B.C
AUTOMATIC
THERMAL
PROTECTOR
(7) .250 STRAIGHT TYPE
SEAM WELD
INSUL Q.C TERMS.
#16 GRN/YEL GROUND LEAD
TO BE 12.000 u.250 BETWEEN
CENTERS OF TERMS.
TERMINALS TO FIT #10 SCREW
4 LEADS # 18,
.031 THICK INSUL.
FOR REVERSING
ROTATION.
(2)YEL=4.000+2-0
(2)ORG=4.000+2-0
NAMEPLATE
12.152
6.062u.062
6.607
4.687
TOP
TOP
REVERSING
WARNING LABEL
TO BE ADJACENT
TO REVERSING
LEADS
WARNING
LABEL
11.607
1.125
5.000u.047
.500u.062
(8) HOLES
.120 - .124 DIA
4.000
"SHIPPED DETACHED KIT ASSEMBLY"
45°
.047
.469
.453
45°
90°
+.0000
-.0010
.500
BROWN
BROWN/WHITE
YELLOW
ORANGE
ORG
YEL
BLACK
BLUE
PURPLE
RED
CAPACITOR
LEADS ARE SHOWN FOR
CCWLE ROTATION. FOR
CWLE ROTATION, INTERCHANGE YELLOW AND
ORANGE LEADS.
WHITE
HI
MED HI
MED LO
LO
LINE
NIDEC MOTOR CORPORATION 18-Feb-17
NIDEC MOTOR CORPORATION 18-Feb-17
NEW DRAWING CREATED
ISSUED BY :
ISSUED BY :
K. DE LA CERDA
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
JC 71501
J. RICE
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

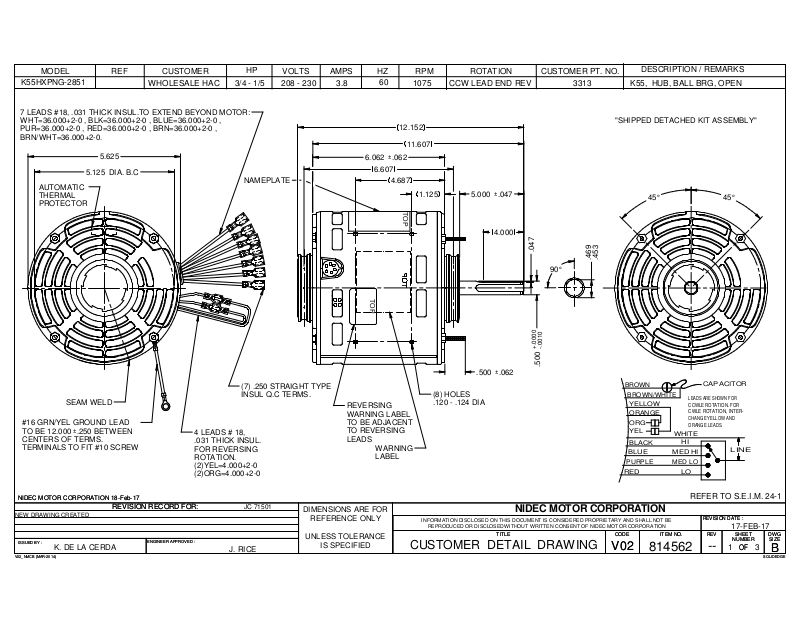

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
814562
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
17-FEB-17
REV
REV
--
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
