US Motors 3303 Dimensional Sheet
MODEL
K55HXSPS-3303
REF
CUSTOMER
WHOLESALE HAC
HP
1/4 602.5
VOLTS
208-230
AMPS
HZ
RPM
1075/2 SPD
ROTATION
CCW LEAD END REV.
CATALOG NO.
3303
DESCRIPTION / REMARKS
#16 GREEN GROUND LEAD TO BE
6.000u.250 BETWEEN CENTERS OF
TERMS. TERM. TO FIT #10 SCREW
AUTOMATIC THERMAL
PROTECTOR
(5) .250 STRAIGHT TYPE Q.C.
TERMS. WITH INSUL. GRIP.
NIDEC MOTOR CORPORATION 15-Mar-18
NIDEC MOTOR CORPORATION 15-Mar-18
UPDATED VIEW NAMEPLATE
ISSUED BY :
ISSUED BY :
J. ALVARADO
REVISION RECORD FOR:
REVISION RECORD FOR:
NAMEPLATE
1.656 REF.
TO FACES OF
3 MTG. BRKTS.
(4) LEADS, #18, .031 THICK INSUL.
(2) YELLOW & (2) ORANGE
FOR REVERSING ROTATION
(5) LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR.
BLACK=60.000 +3-0, RED=60.000 +3-0
WHITE=60.000 +3-0, (2) BROWN=60.000 +3-0
ECO E30870
ENGINEER APPROVED :
ENGINEER APPROVED :
G. MEDINA
3.500 REF.
REV.
A
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
8.375 ±.062
1.000
4.312 ±.047
TOP
WARNING LABEL TO BE
CENTERED & ADJACENT
TO THE LEAD VENTS
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

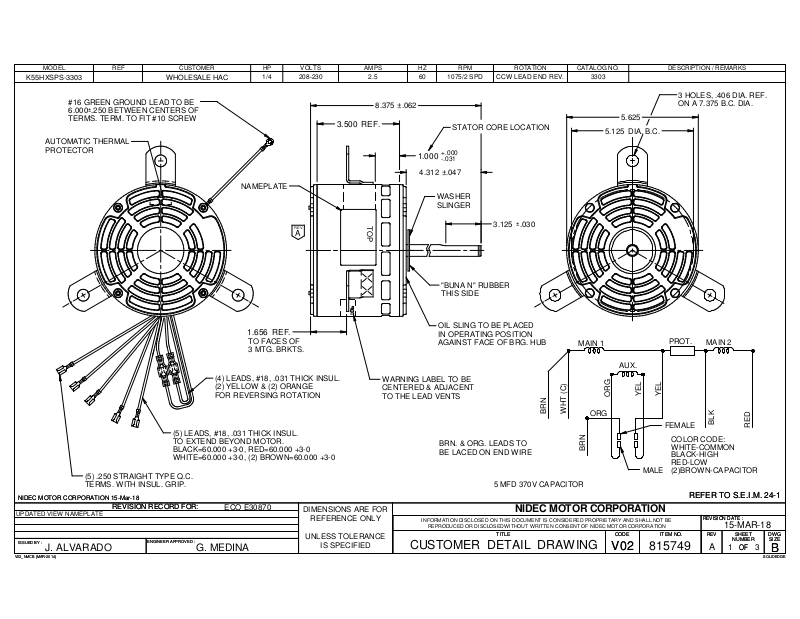

CUSTOMER DETAIL DRAWING
STATOR CORE LOCATION
+.000
-.031
WASHER
SLINGER
3.125u.030
"BUNA N" RUBBER
THIS SIDE
OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG. HUB
BRN. & ORG. LEADS TO
BE LACED ON END WIRE
5 MFD 370V CAPACITOR
NIDEC MOTOR CORPORATION
TITLE
TITLE
3 HOLES, .406 DIA. REF.
ON A 7.375 B.C. DIA.
5.625
5.125 DIA. B.C.
MAIN 1
PROT.
MAIN 2
AUX.
)
C
(
T
N
H
R
B
W
G
R
O
ORG
N
R
B
CODE ITEM NO.
CODE ITEM NO.
V02
V02
L
L
E
E
Y
Y
FEMALE
COLOR CODE:
WHITE-COMMON
BLACK-HIGH
RED-LOW
MALE
(2)BROWN-CAPACITOR
REFER TO S.E.I.M. 24-1
REFER TO S.E.I.M. 24-1
815749
K
L
B
REVISION DATE :
REVISION DATE :
15-MAR-18
REV
SHEET
REV
SHEET
NUMBER
NUMBER
1 3
A
OF
OF
D
E
R
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
