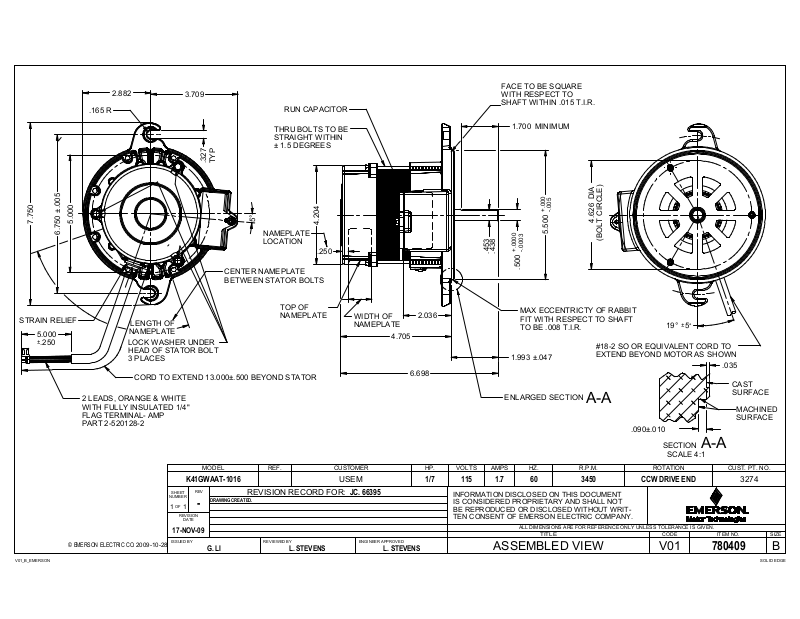

US Motors 3274 Dimensional Sheet

FACE TO BE SQUARE
WITH RESPECT TO
SHAFT WITHIN .015 T.I.R.

1.700 MINIMUM

.165 R

2.882

3.709

RUN CAPACITOR

THRU BOLTS TO BE
STRAIGHT WITHIN
± 1.5 DEGREES

.327

TYP

+.000

°

7.750

5.000

6.750 ±.005

CENTER NAMEPLATE

5

NAMEPLATE
LOCATION

4.204

.250

+.0000

.453

.438

.500

-.005

4.626 DIA

5.500

-.0003

(BOLT CIRCLE)

BETWEEN STATOR BOLTS

STRAIN RELIEF

5.000
.250

u

V01_B_EMERSON

LENGTH OF

NAMEPLATE

LOCK WASHER UNDER
HEAD OF STATOR BOLT
3 PLACES

CORD TO EXTEND 13.000±.500 BEYOND STATOR

2 LEADS, ORANGE & WHITE
WITH FULLY INSULATED 1/4"
FLAG TERMINAL- AMP
PART 2-520128-2

© EMERSON ELECTRIC CO.

2009-10-28

K41GWAAT-1016

REV

SHEET

NUMBER

-

OF

1 1

REVISION

DATE

17-NOV-09

ISSUED BY

TOP OF
NAMEPLATE

WIDTH OF
NAMEPLATE

4.705

MODEL REF.

CUSTOMER HP. VOLTS AMPS HZ. R.P.M. ROTATION CUST. PT. NO.

USEM

DRAWING CREATED.

G. LI L. STEVENS

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

L. STEVENS

JC. 66395

2.036

MAX ECCENTRICTY OF RABBIT
FIT WITH RESPECT TO SHAFT
TO BE .008 T.I.R.

#18-2 SO OR EQUIVALENT CORD TO

1.993 ±.047

EXTEND BEYOND MOTOR AS SHOWN

6.698

ENLARGED SECTION

A-A

.090±.010

1/7 115 1.7 60 3450 CCW DRIVE END

INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT
BE REPRODUCED OR DISCLOSED WITHOUT WRIT­TEN CONSENT OF EMERSON ELECTRIC COMPANY.

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN.

TITLE

ASSEMBLED VIEW

19

°

u

5

v

.035

SECTION

A-A

SCALE 4:1

CODE SIZEITEM NO.

V01

780409

CAST
SURFACE

MACHINED
SURFACE

3274

B

SOLID EDGE
