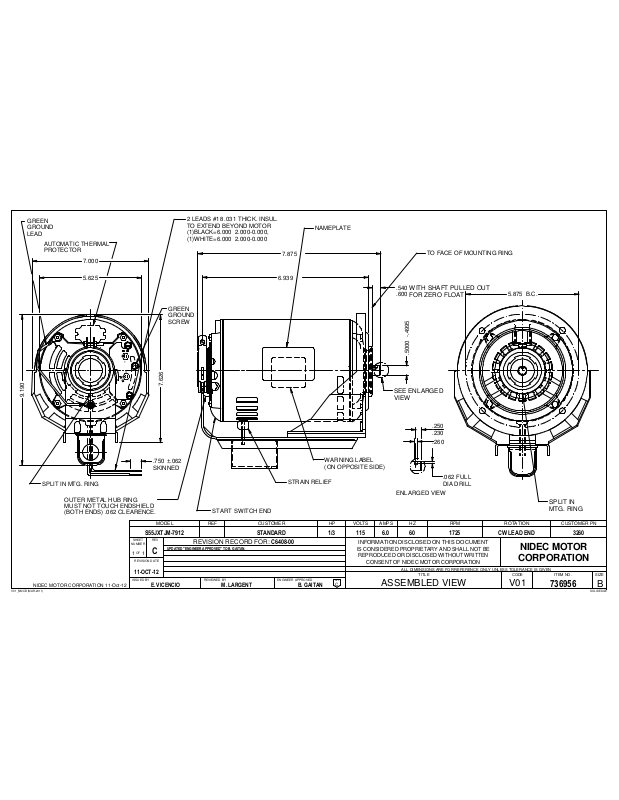

US Motors 3260 Dimensional Sheet

GREEN
GROUND
LEAD

AUTOMATIC THERMAL
PROTECTOR

7.000

5.625

2 LEADS #18 .031 THICK. INSUL.
TO EXTEND BEYOND MOTOR
(1)BLACK=6.000 2.000-0.000,
(1)WHITE=6.000 2.000-0.000

GREEN
GROUND
SCREW

7.875

6.939

NAMEPLATE

TO FACE OF MOUNTING RING

WITH SHAFT PULLED OUT

.540
.600

FOR ZERO FLOAT

5.875 B.C.

9.190

SPLIT IN MTG. RING

OUTER METAL HUB RING
MUST NOT TOUCH ENDSHIELD
(BOTH ENDS) .062 CLEARENCE.

NIDEC MOTOR CORPORATION 11-Oct-12

1

4

SHEET

NUMBER

1 1

REVISION DATE

11-OCT-12

ISSUED BY

7.626

.750 ±.062
SKINNED

MODEL REF

S55JXTJM-7912

REV

UPDATED "ENGINEER APPROVED" TO B. GAITAN.

C

OF

E. VICENCIO

START SWITCH END

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

STANDARD

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

M. LARGENT B. GAITAN

C6408-00

STRAIN RELIEF

WARNING LABEL
(ON OPPOSITE SIDE)

1/3 115 6.0

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

REV.

C

.5000 -.4995

SEE ENLARGED
VIEW

.250
.230

.260

.062 FULL
DIA DRILL

ENLARGED VIEW

60 1725

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

CW LEAD END 3260

ASSEMBLED VIEW

SPLIT IN
MTG. RING

CUSTOMER PN

NIDEC MOTOR

CORPORATION

V01

736956

B

SOLIDEDGEV01_NMCB (MAR-2011)
