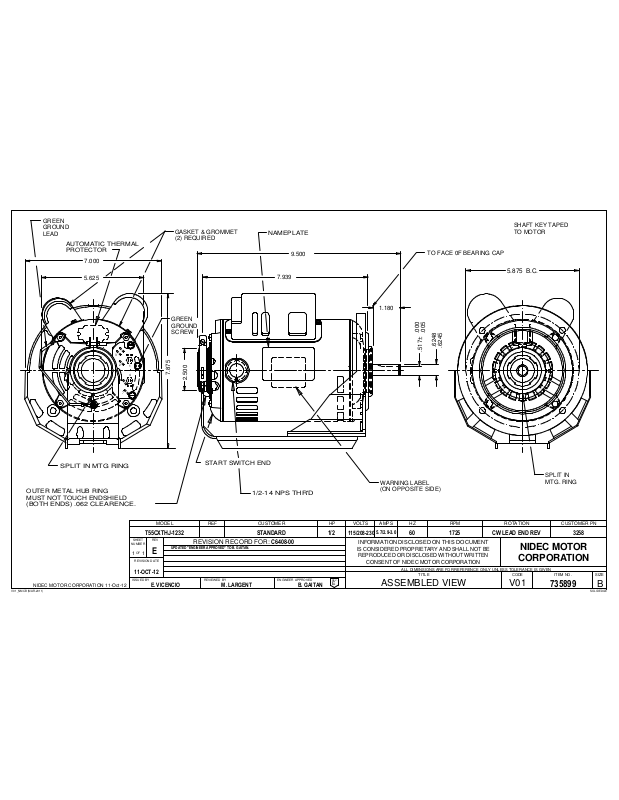

US Motors 3258 Dimensional Sheet

GREEN GROUND LEAD

AUTOMATIC THERMAL PROTECTOR

7.000

5.625

SHAFT KEY TAPED GASKET & GROMMET (2) REQUIRED

NAMEPLATE

9.500

7.939

TO FACE 0F BEARING CAP

TO MOTOR

5.875 B.C.

1.180

GREEN GROUND SCREW

7.875

2.500

.000

.005

.6248

.6245

.517±

SPLIT IN MTG RING

OUTER METAL HUB RING MUST NOT TOUCH ENDSHIELD (BOTH ENDS) .062 CLEARENCE.

NIDEC MOTOR CORPORATION 11-Oct-12

MODEL REF

T55CXTHJ-1232

SHEET

REV

NUMBER

1 1

REVISION DATE

11-OCT-12

ISSUED BY

E. VICENCIO

START SWITCH END

REVISION RECORD FOR:

UPDATED "ENGINEER APPROVED" TO B. GAITAN.

REVIEWED BY ENGINEER APPROVED

M. LARGENT B. GAITAN

WARNING LABEL

1/2-14 NPS THR'D

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

STANDARD

115/208-230

1/2

C6408-00

REV.

(ON OPPOSITE SIDE)

5.7/2.9-3.0

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

1725

ASSEMBLED VIEW

CW LEAD END REV 3258

V01

SPLIT IN MTG. RING

CUSTOMER PN

NIDEC MOTOR

CORPORATION

735899

SOLIDEDGEV01_NMCB (MAR-2011)
