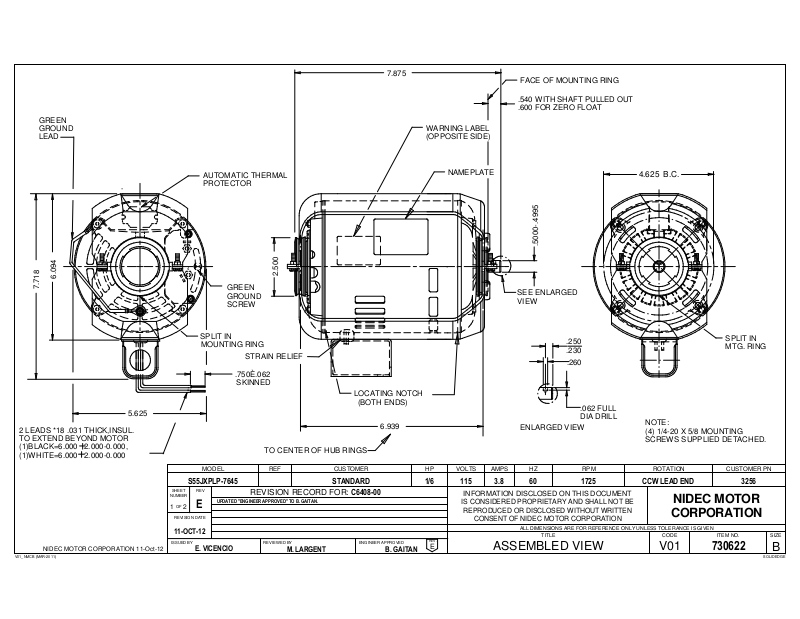

US Motors 3256 Dimensional Sheet

GREEN GROUND LEAD

7.875 FACE OF MOUNTING RING

.540 WITH SHAFT PULLED OUT .600 FOR ZERO FLOAT

WARNING LABEL (OPPOSITE SIDE)

6.094

7.718

2 LEADS *18 .031 THICK,INSUL. TO EXTEND BEYOND MOTOR (1)BLACK=6.000 2.000-0.000, (1)WHITE=6.000 2.000-0.000

NIDEC MOTOR CORPORATION 11-Oct-12

5.625

S55JXPLP-7645

SHEET

NUMBER

REVISION DATE

11-OCT-12

ISSUED BY

AUTOMATIC THERMAL PROTECTOR

GREEN GROUND SCREW

SPLIT IN MOUNTING RING

STRAIN RELIEF

.750È.062

SKINNED

TO CENTER OF HUB RINGS

MODEL REF

REV

UPDATED "ENGINEER APPROVED" TO B. GAITAN.

E. VICENCIO

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

2.500

LOCATING NOTCH

(BOTH ENDS)

6.939

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

STANDARD

C6408-00

M. LARGENT B. GAITAN

NAMEPLATE

1/6 115 3.8

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

REV.

ASSEMBLED VIEW

4.625 B.C.

.5000-.4995

SEE ENLARGED VIEW

.250 .230

.260

.062 FULL DIA DRILL

ENLARGED VIEW

NOTE: (4) 1/4-20 X 5/8 MOUNTING SCREWS SUPPLIED DETACHED.

60 1725

CCW LEAD END 3256

NIDEC MOTOR

CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

V01

SPLIT IN MTG. RING

CUSTOMER PN

730622

SOLIDEDGEV01_NMCB (MAR-2011)
