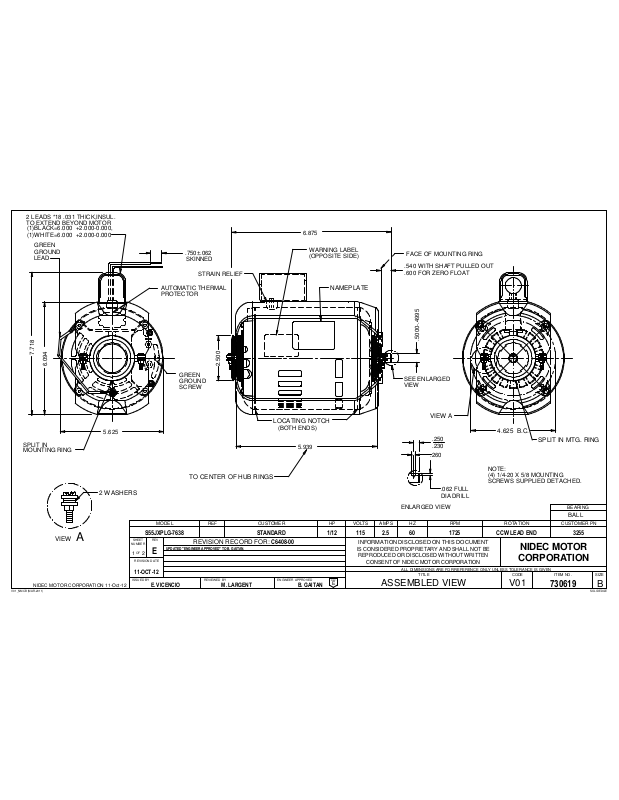

US Motors 3255 Dimensional Sheet
2 LEADS *18 .031 THICK,INSUL.
TO EXTEND BEYOND MOTOR
(1)BLACK=6.000 +2.000-0.000,
(1)WHITE=6.000 +2.000-0.000
GREEN
GROUND
LEAD
.750±.062
SKINNED
STRAIN RELIEF
AUTOMATIC THERMAL
PROTECTOR
6.875
WARNING LABEL
(OPPOSITE SIDE)
NAMEPLATE
FACE OF MOUNTING RING
.540 WITH SHAFT PULLED OUT
.600 FOR ZERO FLOAT
7.718
6.094
SPLIT IN
MOUNTING RING
VIEW
A
NIDEC MOTOR CORPORATION 11-Oct-12
5.625
2 WASHERS
1
4
MODEL REF
S55JXPLG-7638
SHEET
REV
NUMBER
E
OF
1 2
REVISION DATE
11-OCT-12
ISSUED BY
E. VICENCIO
2.500
GREEN
GROUND
SCREW
TO CENTER OF HUB RINGS
REVISION RECORD FOR:
UPDATED "ENGINEER APPROVED" TO B. GAITAN.
REVIEWED BY ENGINEER APPROVED
M. LARGENT B. GAITAN
.5000-.4995
SEE ENLARGED
VIEW
LOCATING NOTCH
(BOTH ENDS)
5.939
VIEW A
.250
.230
4.625 B.C.
.260
NOTE:
(4) 1/4-20 X 5/8 MOUNTING
.062 FULL
DIA DRILL
SCREWS SUPPLIED DETACHED.
ENLARGED VIEW
CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
STANDARD
C6408-00
1/12 115 2.5
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
REV.
E
60 1725
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
ASSEMBLED VIEW
CCW LEAD END 3255
CORPORATION
V01
SPLIT IN MTG. RING
BEARING
BALL
CUSTOMER PN
NIDEC MOTOR
730619
B
SOLIDEDGEV01_NMCB (MAR-2011)
NIDEC MOTOR CORPORATION 11-Oct-12
MODEL REF
S55JXPLG-7638
SHEET
REV
NUMBER
E
OF
2 2
REVISION DATE
11-OCT-12
ISSUED BY
E. VICENCIO
BLUE
PROT
REVISION RECORD FOR:
UPDATED "ENGINEER APPROVED" TO B. GAITAN.
REVIEWED BY ENGINEER APPROVED
M. LARGENT B. GAITAN
AUX
MAIN
1
3
BLK
YEL
2
BLACK
WHITE LINE LEAD
1 4
BLACK LINE LEAD
LINE CONN: UNGROUND-1; GROUND-4
CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
STANDARD
C6408-00
1/12 115 2.5
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
REV.
E
60 1725
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
ASSEMBLED VIEW
BEARING
BALL
CUSTOMER PN
CCW LEAD END 3255
NIDEC MOTOR
CORPORATION
V01
730619
B
SOLIDEDGEV01_NMCB (MAR-2011)
