Page 1
B OF
B OF
mm
VAR
001 S55KXSHF-5519
MODEL
CUSTOMER
STANDARD 8.818
3196
A
C
B
------- 1/8
-------
-------
HP
D
VOLTS
115
SF
1.0 2.4
AMPS
HZ
60
RPM
1725
CONN VOLTS
PROT.CAT. NO.
MANUAL---
DESCRIPTION / REMARKS
8.000
7.250
6.688
2 LEADS, #18, .031 THICK INSUL
TO EXTEND BEYOND MOTOR.
BLACK = 20.0" +2.0" / -0.0"
WHITE = 20.0" +2.0" / -0.0"
5.625
.344 DIA.
HOLE
.625
SKINNED
MANUAL RESET THERMAL
PROTECTOR
NAMEPLATE
WARNING LABEL
FACE TO BE SQUARE WITH RESPECT
TO SHAFT WITHIN .008 T.I.R.
MAX. ECCENTRICITY OF RABBET FIT
WITH RESPECT TO SHAFT TO BE .008 T.I.R.
±.030
1.593
TOP
-.0000
+.0005
TOP
.5000
6.375
+.000
-.005
.453
.438
.125
1.975
±.047
LEAD END / DRIVE END
±.060
A
NIDEC MOTOR CORPORATION 11-Aug-15
NIDEC MOTOR CORPORATION 11-Aug-15
CREATED DRAWING.
ISSUED BY :
ISSUED BY :
G. ISASSI
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
JC 70125
L. BACHMAN
ROTATION: CW LEAD END REV
TOLERANCES ON DIMENSIONS
(UNLESS OTHERWISE SPECIFIED)
INCHES
.XX = ± .010
.XXX = ±.005
ANGLES X°= ±1°

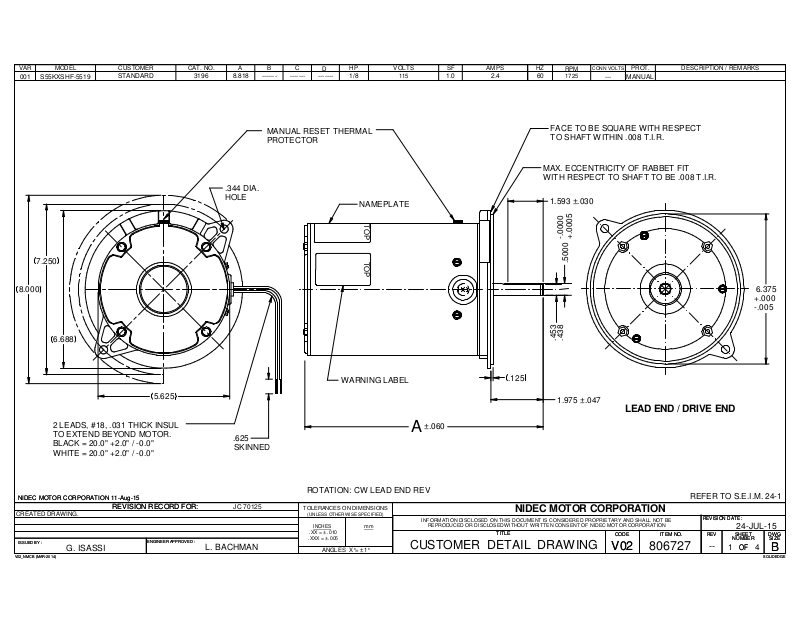

CUSTOMER DETAIL DRAWING
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
806727
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
--
24-JUL-15
SHEET
SHEET
NUMBER
NUMBER
1 4
DWG
DWG
SIZE
SIZE
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
