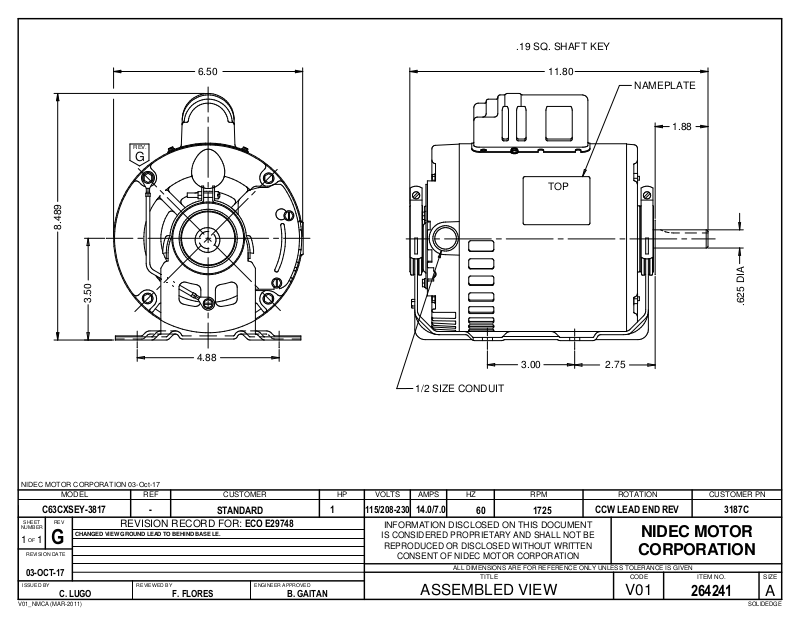

US Motors 3187C Dimensional Sheet

.19 SQ. SHAFT KEY

6.50

11.80
NAMEPLATE

1.88

REV.

G

TOP

8.489

3.50

4.88

2.753.00

.625 DIA

NIDEC MOTOR CORPORATION 03-Oct-17

MODEL REF

C63CXSEY-3817 -

SHEET

NUMBER

1 1

REV

OF

G

REVISION DATE

CHANGED VIEW GROUND LEAD TO BEHIND BASE LE.

REVISION RECORD FOR:

03-OCT-17

ISSUED BY

REVIEWED BY ENGINEER APPROVED

C. LUGO

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

STANDARD

ECO E29748

F. FLORES B. GAITAN

1/2 SIZE CONDUIT

CUSTOMER PN

1

115/208-230

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

14.0/7.0

CONSENT OF NIDEC MOTOR CORPORATION

60 1725

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

ASSEMBLED VIEW

CCW LEAD END REV 3187C

NIDEC MOTOR

CORPORATION

V01

264241

A

SOLIDEDGEV01_NMCA (MAR-2011)
