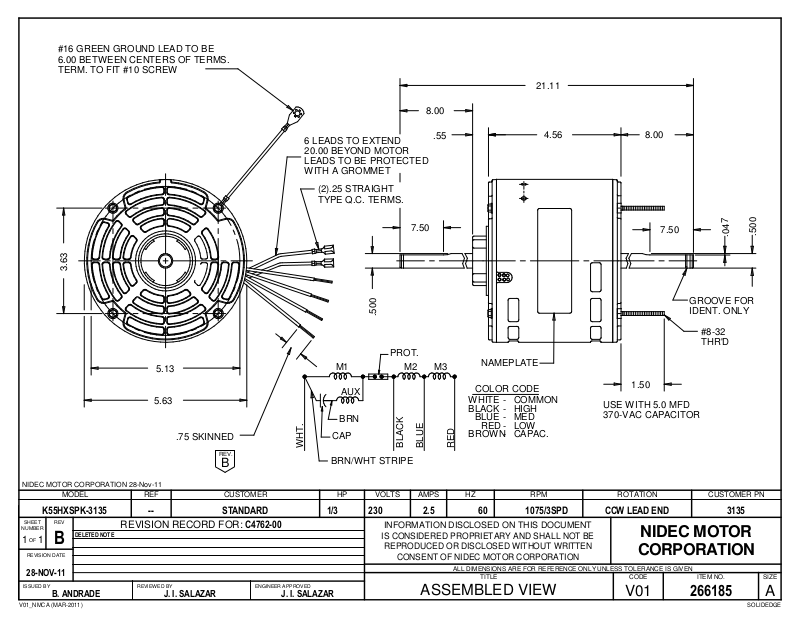

#16 GREEN GROUND LEAD TO BE
6.00 BETWEEN CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
21.11
8.00
4.56 8.00
COMMON
HIGH
MED
LOW
CAPAC.
7.50
GROOVE FOR
IDENT. ONLY
1.50
USE WITH 5.0 MFD
370-VAC CAPACITOR
#8-32
THR'D
0
7
0
4
5
0
.
.
K
C
A
L
B
7.50
.55
NAMEPLATE
COLOR CODE
WHITE
BLACK
E
U
L
B
D
BROWN
E
R
BLUE
RED
-
-
-
-
-
6 LEADS TO EXTEND
20.00 BEYOND MOTOR
LEADS TO BE PROTECTED
WITH A GROMMET
(2).25 STRAIGHT
TYPE Q.C. TERMS.
3
6
.
3
0
0
5
.
PROT.
5.13
5.63
.75 SKINNED
REV.
B
.
T
H
W
M1 M2 M3
AUX
BRN
CAP
BRN/WHT STRIPE
NIDEC MOTOR CORPORATION 28-Nov-11
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXSPK-3135 --
SHEET
NUMBER
1 1
REV
OF
B
REVISION DATE
DELETED NOTE
REVISION RECORD FOR:
28-NOV-11
ISSUED BY
REVIEWED BY ENGINEER APPROVED
B. ANDRADE
STANDARD
C4762-00
J. I. SALAZAR J. I. SALAZAR
1/3 230 2.5
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ASSEMBLED VIEW
60 1075/3SPD
CCW LEAD END 3135
